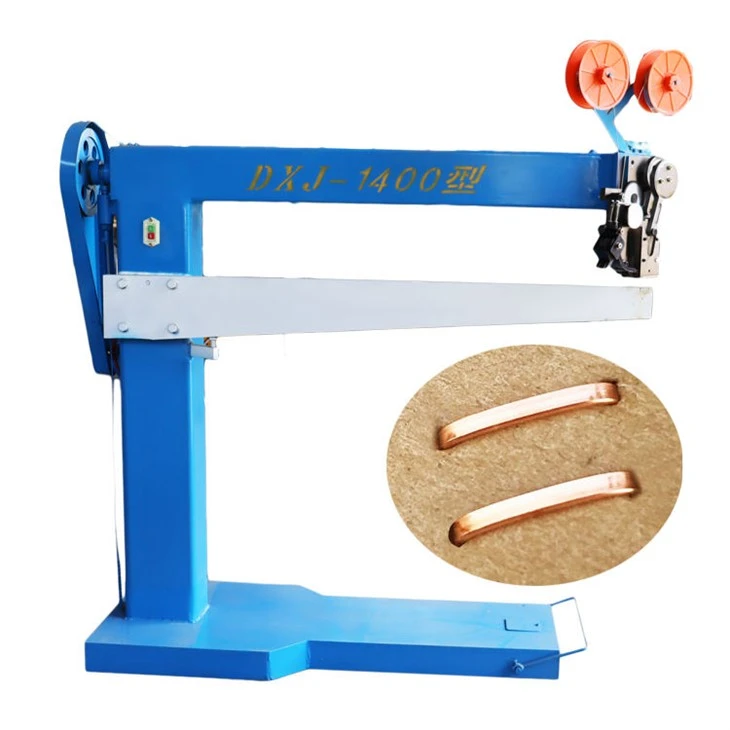

Carton Box Stitching Machine
carton box stitching machine
The Corrugated Cardboard Stitching Machine is a semi-automatic, servo-driven stitcher designed for fast, reliable, and secure stitching of corrugated carton boxes. Featuring dual-servo drive technology and an intuitive touchscreen interface, this machine eliminates the need for skilled operators-new employees can achieve professional results immediately . It handles 3, 5, and 7-layer corrugated board with precision at speeds up to 500 nails per minute, making it the ideal solution for small to medium-sized carton factories seeking efficiency without complexity.
Technical Parameters
| Parameter | Specification |
|---|---|
| Stitching Speed | 300 – 500 nails/min (adjustable) |
| Stitching Pitch Range | 20 – 200 mm |
| Number of Stitches | 1 – 99 nails per box (adjustable) |
| Board Thickness | 3, 5, 7-layer corrugated board |
| Stitching Wire Spec | 17# flat wire |
| Max Feeder Size (A+B)×2 | 2,460 – 3,600 mm (model dependent) |
| Min Feeder Size (A+B)×2 | 606 – 700 mm |
| Max Board Width B | 770 – 1,070 mm (model dependent) |
| Max Board Length A | 1,100 – 1,800 mm (model dependent) |
| Power | 2 – 7 kW |
| Voltage | 220V / 380V, 50Hz |
| Machine Dimensions (L×W×H) | 1,800×550×1,950mm – 3,850×1,700×1,800mm |
| Machine Weight | 480 – 2,700 kg (model dependent) |
| Table Lifting Height | Up to 900mm |
| Stitch Angle | 45° oblique |
Product Features
All-in-One Automation – Save Space & Labor
The machine integrates case erecting, product loading, and case sealing in a single compact unit . This eliminates the need for separate machines and manual labor, significantly reducing your packaging line footprint and operational costs.
Flexible & Gentle Product Handling
Top-load design using vacuum or mechanical pick-and-place systems ensures gentle handling of products – ideal for fragile items like bottles, cans, and flexible pouches . The system accommodates a wide range of product configurations: single/multiple rows, single/multiple layers, standing/lying positions .
Fast & Tool-Free Size Changeover
Change between different case sizes in under 10 minutes with manual adjustments, or opt for fully automatic changeover – no special tools required . This flexibility makes it perfect for small-batch, multi-product production lines.
Boost Production Efficiency
Achieve speeds up to 38 cases per minute with continuous operation capability . Unlike manual packing, the system operates 24/7 with minimal supervision, maximizing your output and ROI.
Usage Precautions
| Area | Precaution |
|---|---|
| Board Quality | Use good quality corrugated board; warped or damaged blanks may affect stitching quality |
| Wire Specification | Always use recommended 17# flat wire for optimal results |
| Operator Safety | Keep hands clear of stitching head during operation; never bypass safety guards |
| Machine Setup | Ensure machine is on level ground; adjust feet for stability |
| Power Supply | Verify voltage matches machine rating before connection |
| Maintenance | Perform regular lubrication of moving parts; inspect alloy heads periodically |
| Training | Minimal required-touchscreen operation is intuitive, but basic safety orientation recommended |
Product Components
| Component | Function |
|---|---|
| Paper Feeding Section | Manual feed guide with adjustable width; servo-driven feeding control |
| Stitching Head | Alloy steel head with carbide dies; performs single/double/strengthened nails |
| Touchscreen HMI | PLC interface for setting nail count, pitch, and stitch type |
| Servo Drive System | Dual servo motors for feeding and stitching; ensures equidistant nail placement |
| Back Baffle | Automatically adjusts via touchscreen; no ruler required |
| Counting System | Automatic counting with batch output function |
| Emergency Stop | Immediate machine shutdown for operator safety |
| Work Table | Lifts to 900mm height for ergonomic feeding |
Product Applications
| Industry | Application |
|---|---|
| E-Commerce & Logistics | Shipping cartons, mailing boxes |
| Food & Beverage | Product packaging boxes, display cartons |
| Electronics | Protective packaging for appliances and devices |
| Furniture & Hardware | Heavy-duty shipping containers |
| Printing & Publishing | Book boxes, media packaging |
| Manufacturing | Assembly line packaging for industrial goods |
Quality Control
| QC Stage | Inspection Criteria |
|---|---|
| Incoming Materials | Material certificates; brand verification for servo motors and PLC |
| In-Process Inspection | Weld quality; alignment tolerance; electrical continuity; leak testing |
| Stitching Accuracy Test | Pitch distance verification; equidistant nail placement ±0.5mm |
| Pre-Shipment Testing | Full functional test with 3/5/7-ply board samples; speed test |
| Safety Compliance | Emergency stop function; guard interlock verification; CE compliance where applicable |
| Documentation | Operation manual; maintenance guide; electrical diagram; test report |
Unique Features Compared to Other Products
| Feature | Our Stitching Machine | Competitors (Typical) |
|---|---|---|
| Operator Skill Required | None-new employees stitch like veterans | Skilled operators required; manual adjustment |
| Size Changeover | <1 minute via touchscreen | 5-10 minutes with tools and ruler |
| Stitch Pitch Adjustment | Direct touchscreen input, 20-200mm | Manual gear adjustment |
| Stitch Types | Single, double, strengthened-all in one run | Limited to single or double; changeover required |
| Feeding Accuracy | Servo-controlled; 100% equidistant nailing | Mechanical gears; risk of pitch deviation |
| Slotting Error Compensation | Corrects for inaccurate slotting lines; eliminates bad seams | Error-prone; poor carton formation |
| Mechanical Reliability | Reduced transmission parts; lower failure rate | Gears and bearings wear; higher maintenance |
| Count & Batch Output | Automatic counting; batch bundling output | Manual counting or limited function |
Contact us today for a customized stitching solution for your carton production line!
