Automatic Digital Printing Machine
automatic digital printing machine

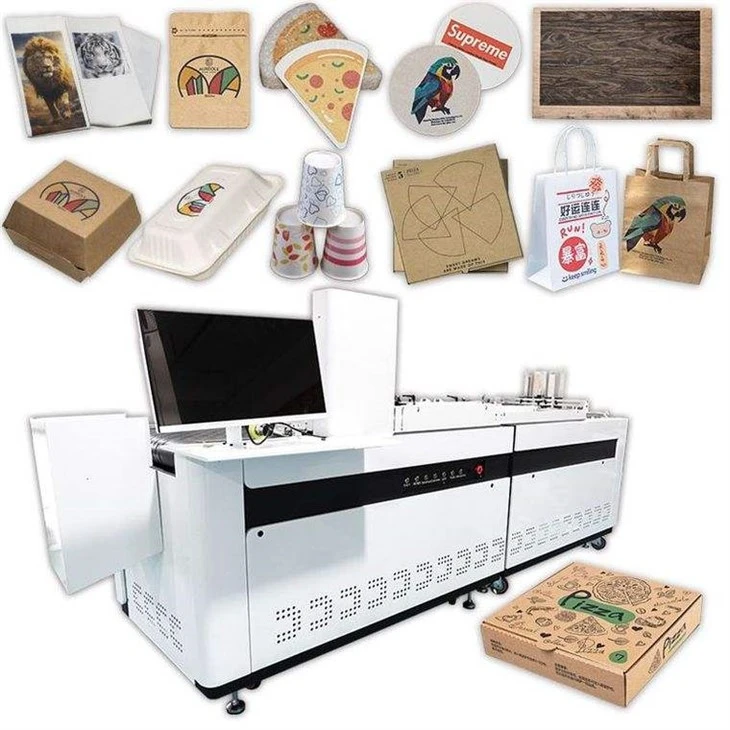

The High Speed Single Pass Digital Printing Machine is an industrial inkjet printer designed for direct printing on paper bags, corrugated cartons, cardboard boxes, pizza boxes, and more. Using advanced single-pass technology with CMYK pigment-based inks, it prints full-color graphics, barcodes, QR codes, and variable data in a single pass-eliminating plate-making and enabling on-demand, high-speed production for small to medium-sized factories .
Technical Parameters
| Parameter | Specification |
|---|---|
| Printing Technology | Single Pass Inkjet (MEMS/Thermal) |
| Printhead Model | Epson i1600/i3200 or HP Industrial Printheads (modular, up to 10 pcs) |
| Print Resolution | 300×300 to 1200×1200 dpi (model dependent) |
| Print Speed | 10 – 80 meters/min (20–150 units/hour) |
| Print Width | A4 (210mm) / A3 (320mm) / up to 645mm (configurable) |
| Max Print Thickness | Up to 100mm (customizable) |
| Ink Type | Pigment-based / Water-based Eco Ink (odorless, food-safe) |
| Ink Colors | CMYK (Cyan, Magenta, Yellow, Black) |
| Ink Supply | Continuous ink supply with multi-filter, dual temperature control |
| Control System | Touchscreen HMI + PC interface |
| Feeding Method | Automatic belt/conveyor feeding with vacuum suction |
| Voltage | 220V/380V, max 2000W |
| Machine Dimensions (L×W×H) | 2,170×900×1,400mm to 2,440×1,320×1,600mm (model dependent) |
| Machine Weight | Approx. 200–550kg |
| Material Types | Corrugated board, kraft paper, cardboard, paper bags, pizza boxes, paper cups |
| File Formats | TIFF, BMP, JPEG, PDF, EPS, AI, CAD, etc. |
| Optional Features | Variable data printing, barcode/QR code printing, white ink module |
Product Features
No Plate Making – Direct Digital Printing
Eliminate costly and time-consuming plate-making processes. Print directly from your computer-ideal for short runs, frequent design changes, and fast turnaround orders . Save up to 40% setup time compared to traditional methods .
High Speed for Mass Production
Achieve production speeds of 20–80 meters per minute . Single-pass technology is 20–50% faster than reciprocating printers , supporting 24/7 continuous operation for commercial-scale output .
Premium Print Quality with Pigment Inks
Crisp, vibrant CMYK prints at up to 1200×1200 dpi . Pigment-based inks deliver fade-resistant, water-resistant results-up to 3x longer durability than dye-based inks . Sharp text, barcodes, and graphics every time.
Versatile Material Compatibility
Prints on corrugated board, kraft paper, cardboard, paper bags, pizza boxes, paper cups, and more . Handles material thickness up to 100mm -from thin paper bags to heavy-duty cartons.
Cooperation Process
Inquiry – Submit your material type, print size, production volume, and application requirements
Consultation – Our engineers recommend the optimal model and configuration
Quotation – Receive detailed proposal with pricing, options, and delivery timeline
Order Confirmation – Contract signing and payment arrangement
Production – Manufacturing with quality inspection and CE compliance testing
Shipping – Secure wooden case packaging, global shipping via FOB/CIF/EXW
Installation Support – Video guidance, online training, optional on-site support
After-Sales Service – 1-year warranty, online technical support, spare parts supply
why choose us
Factory Direct Pricing – Competitive wholesale prices with flexible shipping (FOB/CIF/EXW)
Reliable Industrial Components – Epson/HP printheads, premium servo systems, and quality sensors
CE Certified Quality – Compliant with international safety and quality standards
Customization Available – Print width, printhead count, ink type, and automation settings tailored to your needs
Complete Support Package – Video installation guidance, online technical support, operator training, and spare parts availability
FAQ
Q1: Do I need to make printing plates for this machine?
No. This is a Single Pass digital inkjet printer-no plate making is required. Print directly from your computer, making it perfect for small batches and multiple designs .
Q2: What materials can this printer handle?
Corrugated cartons, paper boxes, paper bags, kraft paper, paper cups, pizza boxes, and more . Supports material thickness up to 100mm depending on configuration .
Q3: What is the print speed?
Speed ranges from 10–80 meters/min depending on model and print resolution settings. For carton printing, typical output is 20–40 m/min for CMYK full-color jobs .
Q4: Is the ink safe for food packaging?
Yes. The eco pigment ink is odorless and meets food packaging safety requirements, suitable for paper cups, pizza boxes, and other food-contact materials .
Q5: What is the print resolution?
Up to 1200×1200 dpi on advanced models, delivering sharp text, barcodes, and high-definition graphics .
For detailed pricing, customization options, or a live demonstration, please contact our sales team today.
