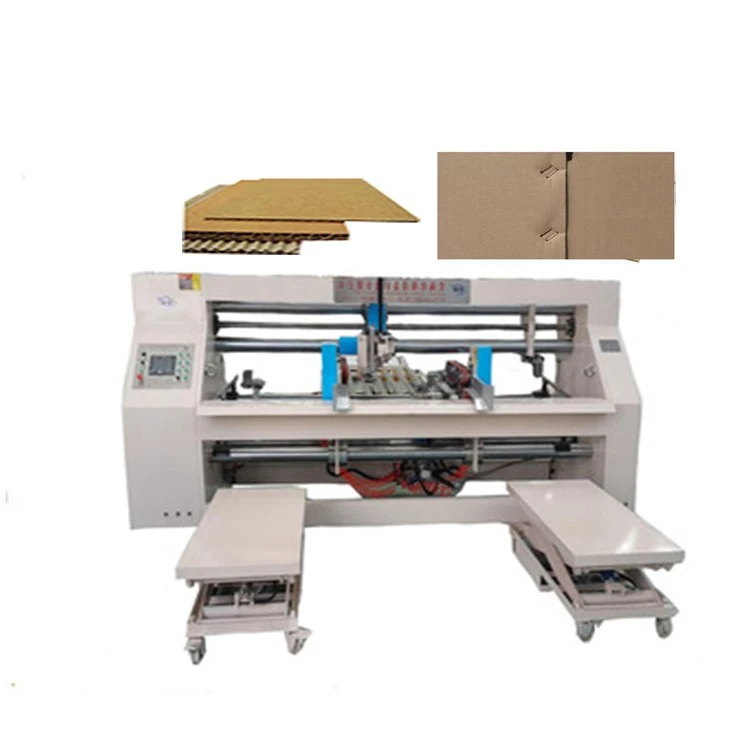

Industrial Corrugated Carton Box Stitching Machine – Heavy-Duty Stitcher for Packaging Lines
Send Inquiry
Product Introduction

carton stitching machine



carton stitching machine

The Industrial Corrugated Carton Box Stitching Machine is a semi-automatic, heavy-duty stitcher designed for fast and secure sealing of corrugated boxes in small to medium-sized production lines. Featuring PLC touchscreen control and dual-servo drive technology, this machine delivers precision stapling at speeds up to 500 nails per minute-ideal for factories requiring reliable, consistent box stitching with minimal operator training .






Technical Parameters

Parameter Specification
Model Industrial Corrugated Box Stitcher
Stitching Speed Up to 500 nails/min
Nails per Box 1–99 nails (adjustable)
Stitching Pitch Range 20–200 mm
Stitching Wire Spec 17# flat wire
Max. Paperboard Width 1,500–3,600 mm (model dependent)
Min. Feeder Size (L+W)×2 606–740 mm
Max. Feeder Size (L+W)×2 2,460–3,600 mm
Paperboard Thickness 3–10 mm (3, 5, 7-layer corrugated board)
Control System PLC + Touchscreen (Siemens/DELTA)
Drive System Dual Servo Motor
Voltage 220V / 380V
Power 6–7.5 kW
Machine Dimensions (L×W×H) 2,200–3,500 × 650–2,600 × 1,500–1,820 mm
Weight 490–3,000 kg
Frame Material Corrosion-resistant steel and aluminum alloy
Stitch Types Single, double, and strengthened stitching
Optional Add-ons Automatic counter ejector, hydraulic platform

Product Features

High-Speed Production

Achieve up to 500 nails per minute, significantly reducing box assembly time compared to manual stitching. The semi-automatic design with servo-driven feeding ensures consistent speed and output for high-volume orders .









Precision and Consistency

Dual servo control technology delivers ±0.5–1.5mm stitching precision, eliminating misalignment defects and reducing material waste . The touchscreen interface allows direct adjustment of nail count, pitch, and stitch type without mechanical changeovers .

User-Friendly Operation

Intuitive PLC touchscreen with multi-language support-set nail distance, quantity, and stitch type (single/double/strengthened) in seconds. No skilled operator required; simple parameter presets for different box sizes .

Auto carton stitching machine

Versatile Box Handling



Accommodates both single and double-piece cartons, with or without covers . Handles 3-, 5-, and 7-layer corrugated board, making it suitable for packaging lines across e-commerce, logistics, food, and industrial sectors .





Cooperation Process

Inquiry – Submit your requirements (bottle size, label specs, production volume)

Consultation – Our engineers recommend the optimal configuration

Quotation – Receive detailed proposal with pricing and lead time

Order Confirmation – Sign contract, arrange payment

Production – Manufacturing and quality control inspection

Shipping – Secure wooden case packaging, global shipping via FOB/CIF/EXW

Installation & Training – Video guidance or on-site support available

After-Sales Support – 1-year warranty, online technical support, spare parts supply



why choose us

Proven Industrial Quality – Premium components: DELTA/Siemens PLC, Japanese steel nail heads, Hongkong CCM guide modules

Factory Direct Pricing – Competitive pricing with flexible shipping options (FOB/CIF/EXW)

Fast Delivery – 5–8 working days lead time

CE Certified – Compliant with international safety and quality standards

Complete Support Package – Installation guidance, video training, online technical support, and spare parts availability



FAQ

Q1: What types of boxes can this machine handle?
Single and double-piece corrugated cartons, with or without covers, in 3-, 5-, and 7-layer configurations .

Q2: What stitching patterns are available?
Single nail, double nail, and strengthened stitching-all selectable via touchscreen .

Q3: How accurate is the stitching?
±0.5–1.5mm precision with dual servo control, significantly better than manual methods .

Q4: Can I adjust stitch pitch easily?
Yes, pitch can be set directly on the touchscreen from 20–200mm without mechanical adjustments .
