High Speed Non Woven Bag Making Machine
high speed non woven bag making machine

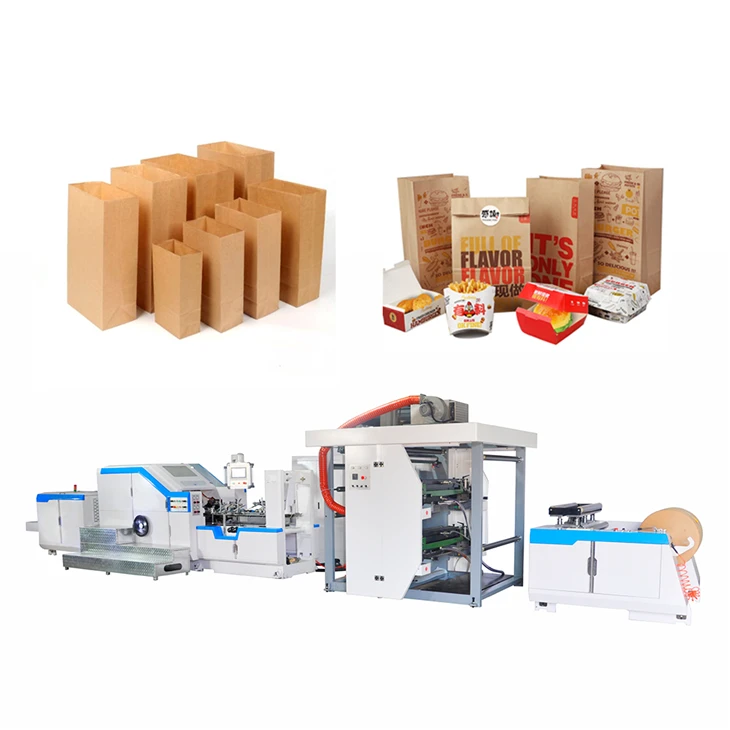

This is a state-of-the-art, fully automatic roll-fed paper bag making machine designed for the high-speed production of eco-friendly shopping and gift bags. Engineered for industrial efficiency, the machine integrates advanced PLC control with a servo-driven motor system to deliver precision and reliability. It operates directly from a paper roll, performing the entire production process-from handle application and tube forming to cutting and gluing-in a single, continuous operation.
Parameter List
| Parameter | Specification |
|---|---|
| Model | ZB460RS / MB-330 Series (Reference) |
| Bag Width | 200 - 460 mm |
| Bag Length (Cut-off) | 260 - 810 mm |
| Bottom Width | 80 - 260 mm |
| Paper Roll Width | 590 - 1470 mm |
| Paper Thickness | 80 - 170 g/m² |
| Max. Production Speed | 120 - 150 bags/min |
| Total Power | 35 - 42 kW |
| Machine Weight | 18,000 - 19,000 KG |
| Dimensions (LWH) | ~14500 x 6000 x 3100 mm |
| Power Supply | 380V, 50Hz, 3 Phase |
Product Features
High-Speed Efficiency
Capable of producing up to 120 bags per minute (with handles), ensuring rapid output to meet demanding production schedules.
Precision Control
Utilizes a PLC (Programmable Logic Controller) and high-precision HMI touch screen for intuitive operation and exact adjustment of all machine parameters.
Robust & Reliable
Built with durable components and high-quality bearings from leading brands like NSK and BEM, ensuring long-term stability and minimal downtime.
Cost-Effective
Features automated glue application and tension control, reducing material waste and optimizing resource usage.
Customization for Various Applications
The machine's strength lies in its ability to be configured for different bag styles and sizes, making it a versatile tool for:
Retail Shopping Bags: Produces high-quality, durable bags for clothing, groceries, and general merchandise.
Gift & Boutique Packaging: Creates premium square-bottom bags suitable for gifts and luxury retail, with options for flat or twisted handles.
Food & Takeout Packaging: Ideal for bakery items, fast food, and takeout containers, offering a sturdy, food-safe option.
Installation & Setup Notes
Workspace Preparation: The machine requires a stable, level concrete floor. A minimum clearance of one meter around the machine is necessary for safe operation and maintenance .
Power Supply: Ensure a stable 380V, 50Hz, 3-phase power supply is available .
Initial Setup: An operator station should be positioned near the touchscreen HMI for optimal visibility and control during production .
Product Components
Feeding Unit: Equipped with air shafts and a hydraulic lifting system for easy roll loading.
Tension Control: Advanced magnetic powder controller for consistent and stable paper feeding.
Handle Application Unit: A servo-driven system for precise cutting and pasting of handles.
Control System: High-end PLC and HMI touch screen (e.g., Mitsubishi PLC).
Gluing System: Automatic water-based and hot-melt glue systems with adjustable volume control.
Cutting & Forming Section: High-speed rotating cutter and precision forming systems for square bottoms.
Collecting Station: Automatically counts and collects finished bags onto a conveyor belt.
Product Applications
The machine is the ideal solution for businesses producing a wide variety of paper bags, specifically for:
Retail Shopping Bags: High-quality bags for clothing, footwear, and accessories.
Food Packaging: Excellent for bakeries, takeout, and fast-food establishments.
Gift & Boutique Bags: Perfect for producing high-end, customizable packaging solutions.
Enhanced Manufacturing Process & Quality Control
Detailed Production Workflow
Feeding & Tension Control: Paper is fed from the roll under a closed-loop tension control system to prevent creasing or stretching .
Inline Handle Making: A dedicated section forms the handle in-line from a separate roll of reinforced paper and twisted rope .
Handle Application: The formed handle is precisely glued and applied to the main paper web .
Tube Forming: The paper web with handles attached is shaped into a tube. Side glue is applied to form the overlap seam .
Cut-Off: The continuous tube is cut to the pre-set bag length using a servo-controlled rotary cutter .
Bottom Forming: The cut bag blanks are mechanically folded and glued to create the square bottom .
Final Output: The finished, folded bags are conveyed and counted.
Quality Control Elements
Branded Components: The machine uses high-quality, globally sourced components to ensure longevity and reliability. Examples include Mitsubishi servo motors, SICK photoelectric sensors , and potentially Bosch Rexroth servo systems depending on the specific configuration.
Smart Fault Diagnosis: Modern models have integrated modules that automatically stop the machine and display visual alerts for issues like paper deviation or abnormal operation, making troubleshooting quicker .
Pre-Delivery Testing: To ensure reliability, machines often undergo factory testing, including running with various paper types, before shipment .
