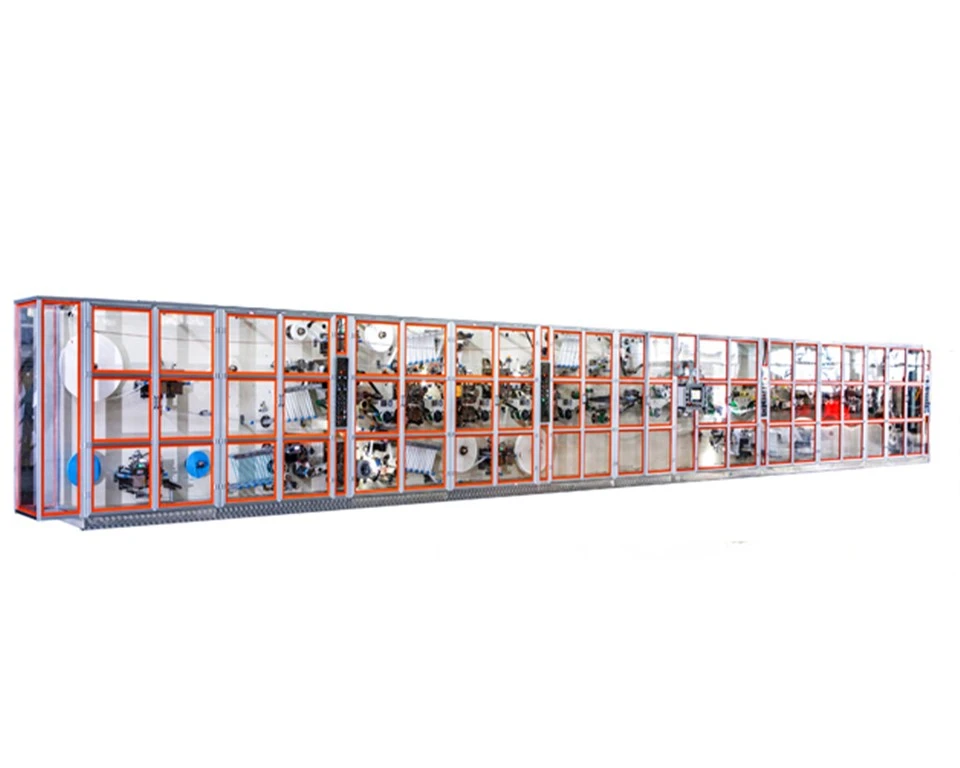

Pads Equipment
Pads Equipment is a highly efficient, automated production machine for all types of pads. This fully servo pads equipment is ideal for pad manufacturers because of its high efficiency, automation and precise control.
Working Principle
Fully servo pad equipment relies heavily on servo systems for precise control. Servo system is a kind of automatic control system, which can make the position, orientation, state and other output controlled quantities of the object follow the changes of the input target.
System composition: mainly includes servo drive, encoder and servo motor and other components.
- Servo driver: after receiving the control command, it sends out a signal to drive the servo motor to rotate.
- Encoder: embedded in the motor, the motion parameters feedback to the servo drive.
- Servo motor: After receiving the drive signal, it rotates a specific angle according to the command to realize the displacement.
Working Principle: The servo drive precisely controls the motion of the motor according to the control commands and the signals fed back from the encoder, forming a closed-loop control system. This system ensures that the rotation of the motor is precise and accurate, thus realizing the precise positioning and packaging of the pad equipment.
By adopting the servo system, the full-servo pad equipment realizes efficient and stable pad production and packaging process.
Technical Features
Compact design, easy to operate and maintain
Modular design, allowing the technical organization to upgrade
Low energy consumption and high efficiency
Servo or inverter drive
Human-machine interface
Automatic recording and calculation of production data
Zero speed reduction of the main raw materials, automatic disconnection and splicing
Frequency conversion or servo unwind, automatic tensioning
Automatic deviation correction device
Automatic quality inspection, equipped with sensing device
Raw material breakage automatic shutdown, missing automatic detection/automatic scrapping.
product parameters
| Power supply | Three-phase 380V/50HZ | Installed power | 135-185KW |
| Gas consumption | 1800-4800L/min | Production speed (product speed) | 800-1200pcs/min |
| Production speed (line speed) | Approx. 200 m/min | Product width (min-max) | 155mm |
| Product length (min-max) | 155-400mm | Finished product rate | >98% |
| Equipment own size |
L x W x H: 20--25mx4.5-6mx3～4.5m |
||
Applications
Pads equipment is mainly suitable for home textile, daily chemicals, sanitary products and other fields of application. Specifically:
- Home textile field: it is suitable for producing disposable pet pads, disposable mattresses, etc. to meet the daily needs of families.
- Daily chemicals field: It can be used to produce women's hygiene products such as strip pack sanitary napkins, menstrual pants, reassurance pants, etc., as well as adult incontinence products such as adult pull-ups, adult pads, etc., providing convenience and comfort.
- Hygiene product field: It is especially suitable for the production of medical hygiene care pads, such as reassurance auntie pants, etc. It provides support for hygiene protection in special cases, avoids cross infection and reduces hygiene risks.
If you are interested in manufacturing Disposable Hygiene Products Gum, please feel free to contact us for more product information.
