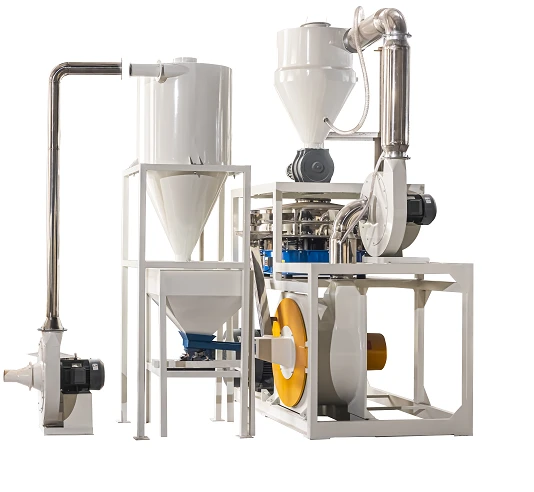

Pulverizer Crushing Machine

The core working principle of a pulverizer crushing machine is to apply controlled mechanical forces (impact, compression, attrition, shear) to raw materials, breaking them down into the desired particle size through a systematic process. The entire operation involves five key stages: raw material feeding, pre-crushing (optional), main pulverization, particle classification, and collection. Specifically, large raw materials are first fed into the machine through a quantitative feeding system, ensuring a steady and uniform flow. For extra-large or ultra-hard materials, a pre-crushing device reduces them to a manageable size (≤20mm) to avoid damaging the main pulverization components[4][8]. Inside the main pulverization chamber, the machine uses high-speed rotating components (hammers, fluted discs, rollers, or blades) to exert intense forces on the materials: impact forces shatter brittle materials, compression forces squeeze hard materials, attrition forces grind particles through friction, and shear forces tear fibrous materials. After pulverization, a classification system (screen or air classifier) separates qualified particles from coarse ones—qualified fine particles are collected through a dust collection system, while coarse particles are re-circulated into the pulverization chamber for reprocessing.

Send Inquiry

Product Introduction

The core working principle of a pulverizer crushing machine is to apply controlled mechanical forces (impact, compression, attrition, shear) to raw materials, breaking them down into the desired particle size through a systematic process. The entire operation involves five key stages: raw material feeding, pre-crushing (optional), main pulverization, particle classification, and collection. Specifically, large raw materials are first fed into the machine through a quantitative feeding system, ensuring a steady and uniform flow. For extra-large or ultra-hard materials, a pre-crushing device reduces them to a manageable size (≤20mm) to avoid damaging the main pulverization components[4][8]. Inside the main pulverization chamber, the machine uses high-speed rotating components (hammers, fluted discs, rollers, or blades) to exert intense forces on the materials: impact forces shatter brittle materials, compression forces squeeze hard materials, attrition forces grind particles through friction, and shear forces tear fibrous materials. After pulverization, a classification system (screen or air classifier) separates qualified particles from coarse ones-qualified fine particles are collected through a dust collection system, while coarse particles are re-circulated into the pulverization chamber for reprocessing.

Technical Parameter Table

Parameter	Small-Scale Fluted Disc (5-200kg/h)	Medium-Scale Hammer Type (200-1000kg/h)	Large-Scale Impact Type (1000-8000kg/h)	Roller Type (100-500kg/h)
Pulverization Type	Fluted Disc (Fine Grinding)	Hammer (Impact Crushing)	Impact (High-Speed Impact)	Roller (Compression Crushing)
Production Capacity	5-200 kg/h	200-1000 kg/h	1000-8000 kg/h	100-500 kg/h
Feeding Granularity	≤6 mm	≤10 mm	≤20 mm	≤12 mm
Crushing Fineness (Mesh)	20-120 (adjustable)	12-120 (adjustable)	12-80 (adjustable)	12-60 (adjustable)
Spindle Rotation Speed	4500-6000 r/min	3400-3800 r/min	1400-2900 r/min	1800-3400 r/min
Motor Power	2.2-11 kW (Electric)	11-18.5 kW (Electric)	18.5-55 kW (Electric)	4-11 kW (Electric/Diesel)
Voltage	220V/380V, 50/60Hz	380V, 50/60Hz	380V, 50/60Hz	220V/380V (Electric)/Diesel
Crushing Chamber Material	Stainless Steel (304)	Wear-Resistant Manganese Steel	Alloy Steel	Wear-Resistant Manganese Steel
Dust Collection Efficiency	≥99%	≥99%	≥99%	≥98%
Machine Dimensions (L×W×H)	520×510×1000 mm	700×670×1370 mm	1350×1000×2100 mm	650×570×1240 mm
Machine Weight	100-300 kg	300-500 kg	500-1500 kg	200-400 kg
Noise Level	≤70 dB	≤75 dB	≤80 dB	≤75 dB
Applicable Raw Materials	food ingredients, chemical powders	Straw, rice husk, stones, ores	Rocks, concrete, asphalt, large ores	Minerals, ores, building debris

Core Components

Pulverization Chamber

The "heart" of the machine, where the main size reduction occurs. It is equipped with specialized crushing components tailored to different material types: hammer heads (for brittle/hard materials), fluted discs (for fine grinding), rollers (for compression crushing), or blades (for fibrous materials). The chamber is made of high-quality wear-resistant steel (manganese steel or alloy steel) with a smooth inner wall to avoid material accumulation and reduce wear. The gap between crushing components is adjustable to control the final particle size.

Feeding System

Composed of a feeding hopper, screw conveyor, and quantitative feeder, ensuring uniform feeding and preventing material blockage. The quantitative feeder adopts frequency conversion speed regulation, allowing operators to adjust the feeding amount according to raw material characteristics and production needs. For sticky materials (e.g., plastic scraps), an anti-blocking device is installed to ensure smooth operation.

Drive System

Provides the necessary power for the machine, available in electric motor or diesel engine versions. Electric motors (2.2-55kW, industrial models up to 240kW) are suitable for fixed production sites with stable power supply, while diesel engines are ideal for outdoor or remote areas (e.g., mining sites, construction sites) without power. The drive system uses high-precision gear transmission or belt transmission, ensuring stable operation, low noise (≤75dB), and high energy utilization.

Control System

Equipped with an intuitive LCD touchscreen (supporting English and multi-language) for parameter setting, including pulverization speed, feeding amount, particle size, and dust collection intensity. The system supports real-time fault alarm (e.g., material blockage, motor overload, screen damage), helping operators quickly identify and solve issues. High-end models also support remote monitoring and parameter adjustment.

Core Advantages

1. High Efficiency & Large Output, Reduce Labor Costs

Compared to manual grinding or ordinary crushing equipment, pulverizer crushing machines improve production efficiency by 6-10 times, with large-scale models achieving an output of 8000kg/h. One operator can complete the entire process (feeding, pulverization, collection), replacing 4-6 manual workers, reducing labor costs by 60-75%. The automatic feeding and continuous operation design ensure uninterrupted production, meeting large-scale processing needs.

2. Uniform Particle Size, High Product Quality

Adopts high-precision crushing components, quantitative feeding system, and classification system, ensuring uniform particle size (12-120 mesh adjustable) and high particle uniformity. The particle forming rate is ≥98%, reducing material waste and improving the quality of finished products. For example, in the pharmaceutical industry, uniform powder particle size ensures the efficacy of medicines; in the food industry, it improves the taste and texture of food products.

3. Wide Raw Material Compatibility, Adapt to Multi-Industry Use

The machine is compatible with various materials, including brittle materials (stones, sugar), fibrous materials (straw, wood chips), viscous materials (plastic scraps), and heat-sensitive materials. It can handle both hard and soft materials, eliminating the need for multiple equipment for different raw materials. This versatility makes it suitable for mining, pharmaceutical, food, chemical, and agricultural industries.

4. High Efficiency & Labor Cost Savings

Compared to manual bonding, the machine improves work efficiency by 4-6 times, with a dispensing speed of 50-300 mm/s and a production capacity of 1000-3000 pieces per hour (depending on component size). One operator can complete the entire process (component positioning + machine triggering), replacing 2-3 manual workers, reducing labor costs by 60-70%. The fast preheating time (10-20 minutes) and parameter template storage function reduce changeover time, ensuring uninterrupted production.
