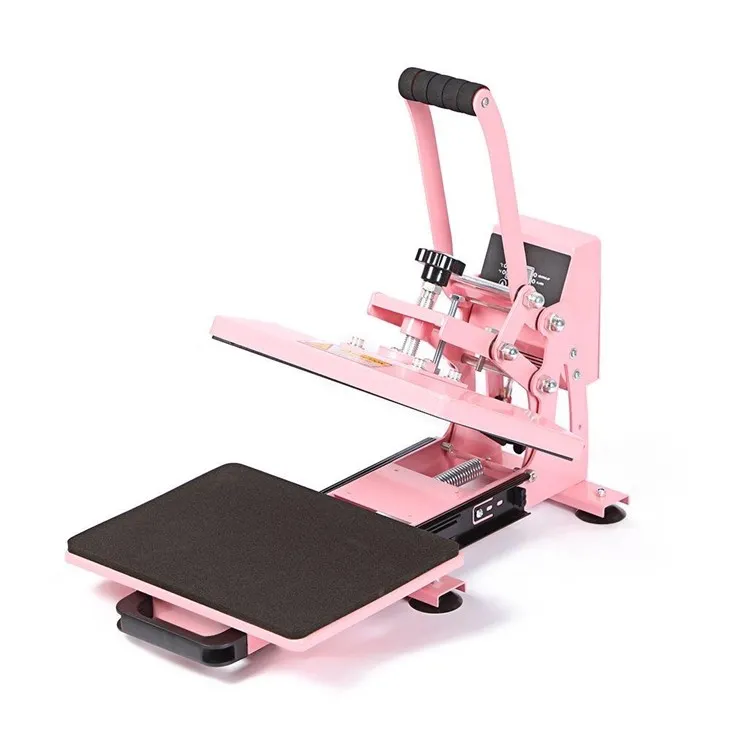

Clamshell Heat Press
clamshell heat press
The clamshell heat press gets its name from its rear-mounted hinge design, which allows the upper platen to open and close like a clam or oyster shell-lifting upward and slightly backward before lowering directly onto the lower platen. This vertical opening mechanism eliminates the need for extra horizontal space, making it one of the most space-efficient heat press designs available. At its core, it operates by combining three key elements-heat, pressure, and time-to bond transfer materials (heat transfer vinyl/HTV, sublimation paper, DTF transfers, or heat transfer film) to substrates at a molecular level, ensuring durable, vibrant, and professional-grade prints.
Technical Parameter Table
|
Parameter |
Entry-Level Manual Digital (Beginner/Hobbyist) |
Mid-Range Semi-Automatic Digital (Small Business/Studio) |
Commercial-Grade Semi-Automatic (High-Volume Small Business) |
|---|---|---|---|
|
Heating Platen Size |
23x33cm (9x13 inches) / 38x38cm (15x15 inches) – Fits small to medium flat items |
38x38cm (15x15 inches) / 40x50cm (16x20 inches) – Fits adult t-shirts, hoodies |
40x50cm (16x20 inches) / 50x70cm (20x28 inches) – For large flat items, high-volume batches |
|
Temperature Range |
0-250°C (32-482°F) – Suitable for cotton, polyester, basic HTV |
0-300°C (32-572°F) – Supports sublimation, HTV, DTF transfers |
0-350°C (32-662°F) – For multi-material, high-volume printing |
|
Temperature Control Precision |
±3°C – Consistent for hobby use |
±2°C – Professional-grade consistency (PID controller) |
±1°C – Commercial-level precision (advanced PID controller) |
|
Dwell Time Range |
0-99 seconds – Ideal for small batches (10-50 items/day) |
0-999 seconds – Programmable presets (5-10 presets) |
0-999 seconds – Programmable, with cycle counter |
|
Pressure Range |
0-50 psi (manual knob adjustment, digital display) |
0-80 psi (gas spring-assisted manual adjustment, digital pressure display) |
0-80 psi (pneumatic adjustment, digital control) |
|
Heating Method |
Electric (heating tube) – Teflon-coated aluminum platen |
Electric (ceramic heating element) – Even heat distribution |
Electric (high-density cartridge heaters) – Fast, uniform heating |
|
Power Supply |
110V/220V, 800W-1500W – Household/basic use |
110V/220V, 1500W-2000W – Small commercial use |
110V/220V, 2000W-2500W – High-volume commercial use |
|
Preheat Time |
5-8 minutes |
3-5 minutes – Faster for small-batch efficiency |
2-4 minutes – Commercial-grade speed |
|
Automation Level |
Manual (hand-operated platen, digital timer/temp control) |
Semi-automatic (auto-timer, auto-open, digital controls) |
Semi-automatic (auto-timer, auto-open, pressure control, cycle counter) |
|
Applicable Substrates |
Flat fabrics (cotton, polyester), small flat items (mouse pads, coasters) |
Flat fabrics, tote bags, ceramic plates, small rigid items (up to 6mm thickness) |
All flat substrates, thick fabrics (hoodies), large flat items, high-volume batches |
|
Daily Production Capacity |
50-100 items |
100-300 items |
300-500 items |
|
Weight & Dimensions |
12-20kg; 50x45x35cm (compact, easy to store) |
20-35kg; 65x55x45cm (sturdy, table-mounted) |
35-50kg; 80x65x55cm (heavy-duty, table/floor-mounted) |
|
Digital Features |
Basic LCD display, temperature/time control, no presets |
Advanced LCD touchscreen, programmable presets, auto-alarm, auto-open |
Touchscreen display, multiple presets, cycle counter, pressure display, error alerts |
|
Safety Features |
Heat-resistant handle, overheat protection, non-stick platen, auto-shutoff |
Emergency stop, thermal cut-off, auto-open, anti-scald cover, auto-shutoff |
Emergency stop, safety lock, auto-pressure relief, anti-scald cover, fault alarm |
Core Components
Hinged Upper Platen
The defining feature of a clamshell heat press, the upper platen is attached to a rear hinge that enables vertical opening and closing. It is typically made of CNC-machined aluminum (for fast, even heat conduction) or ceramic (for superior temperature stability), with an industrial-grade Teflon or PTFE non-stick coating. This coating prevents transfer material from sticking to the platen, avoids scorching substrates, and simplifies cleanup. Platen sizes range from 23x33cm (9x13 inches) for small projects to 50x70cm (20x28 inches) for larger items like adult t-shirts.
Fixed Lower Platen
A stable, flat base (often with a silicone rubber pad rated 40-60 Shore A) that holds the substrate during pressing. The fixed design simplifies alignment for repeatable placements, ensuring consistent design positioning across multiple items. Some models offer exchangeable lower platens for added versatility.
Digital Control Panel
Modern clamshell heat presses feature intuitive LCD displays with microprocessor-based digital controls, replacing outdated analog knobs. These panels allow precise adjustment of temperature, dwell time, and (on advanced models) pressure, with many offering programmable presets for different substrates and transfer methods. High-quality models include PID controllers that maintain temperature within ±2°F (±1°C) for consistent results.
Compact Footprint
The vertical opening design requires minimal horizontal space, making it ideal for home workshops, small studios, and retail counters. Unlike swing-away models, it doesn't need extra room for the platen to swing sideways, saving valuable workspace.
Simple Operation
With fewer moving parts than swing-away or draw-style models, clamshell presses are easy to set up and operate-perfect for beginners. The vertical opening motion allows for quick loading and unloading, boosting efficiency for small batches.
Core Advantages of Clamshell Heat Press Machines
1. Space-Saving Design (Ideal for Small Workspaces)
The biggest advantage of clamshell heat presses is their compact footprint. Unlike swing-away models that require extra horizontal space for the platen to swing sideways, clamshell presses open vertically, minimizing the space they occupy. This makes them perfect for home workshops, small studios, retail counters, or anyone working in limited areas. Their table-mounted design further saves space, allowing you to set them up on a standard workbench without dedicated floor space.
2. Easy to Use & Perfect for Beginners
Clamshell heat presses have a simple, intuitive design with fewer moving parts than swing-away or draw-style models. The vertical opening and closing motion is easy to master, even for those with no prior heat press experience. Digital controls with clear LCD displays eliminate guesswork, and many models include pre-saved presets for common substrates, making it easy to achieve professional results from day one. This ease of use means you don't need to hire skilled operators, saving time and money on training.
3. Cost-Effective Entry Point (Budget-Friendly)
Compared to swing-away, draw-style, or fully automatic heat presses, clamshell models are significantly more affordable. Entry-level manual digital models are accessible for hobbyists and small businesses with limited startup budgets, while mid-range semi-automatic models offer advanced features (auto-open, programmable presets) at a fraction of the cost of industrial machines. They also have low maintenance costs and a lifespan of 5-10 years, providing long-term value for money.
