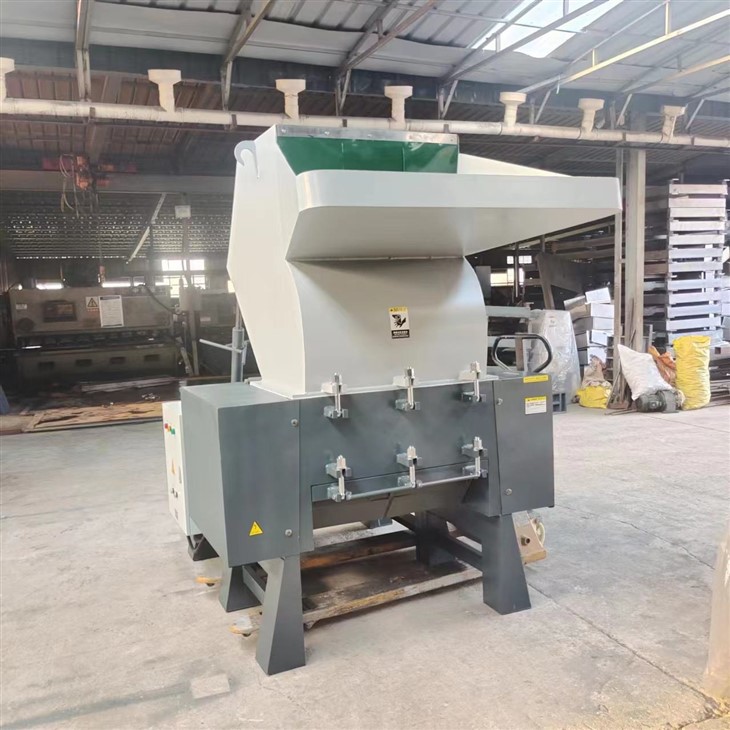

Pulverizer Crushes

The core working principle of a pulverizer crushing machine is to apply controlled mechanical forces (impact, compression, attrition, shear) to raw materials, breaking them down into the desired particle size through a systematic process. The entire operation involves five key stages: raw material feeding, pre-crushing (optional), main pulverization, particle classification, and collection. Specifically, large raw materials are first fed into the machine through a quantitative feeding system, ensuring a steady and uniform flow. For extra-large or ultra-hard materials, a pre-crushing device reduces them to a manageable size (≤20mm) to avoid damaging the main pulverization components[4][8]. Inside the main pulverization chamber, the machine uses high-speed rotating components (hammers, fluted discs, rollers, or blades) to exert intense forces on the materials: impact forces shatter brittle materials, compression forces squeeze hard materials, attrition forces grind particles through friction, and shear forces tear fibrous materials. After pulverization, a classification system (screen or air classifier) separates qualified particles from coarse ones—qualified fine particles are collected through a dust collection system, while coarse particles are re-circulated into the pulverization chamber for reprocessing.

Send Inquiry

Product Introduction

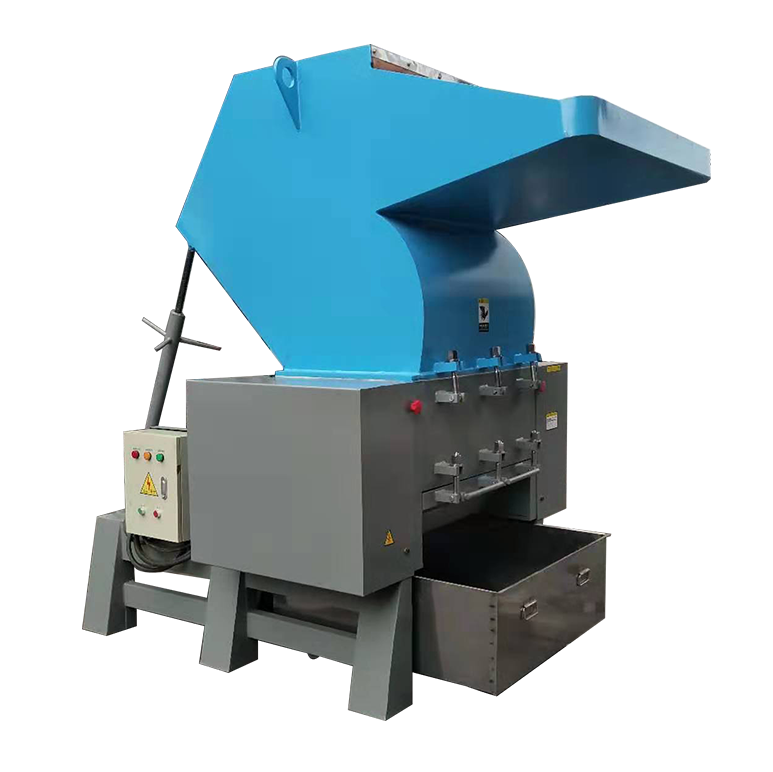

H9d8e36613e14470eac5655ca02def4c8j

Pulverizer Crushes

Pulverizer Crushes (also known as crushing pulverizers or industrial crushers) are high-performance industrial equipment designed to break down large, coarse, or bulky solid materials into fine, uniform powders, granules, or small particles through mechanical forces-including impact, compression, attrition, and shear. As a core piece of equipment in size reduction processes, Pulverizer Crushes are widely used across mining, agriculture, pharmaceutical, food processing, chemical, construction, and waste recycling industries. They efficiently transform hard, fibrous, brittle, or viscous raw materials-such as rocks, ores, agricultural waste (straw, rice husk), traditional Chinese medicine, food ingredients (sugar, cocoa beans), chemical powders, plastic scraps, and building debris-into high-value, usable products. Unlike ordinary crushing equipment, Pulverizer Crushes integrate crushing and grinding functions, achieving finer particle sizes, higher uniformity, and more flexible adaptability, solving the core pain points of low raw material utilization, uneven particle quality, high waste, and environmental pollution.

Technical Parameter Table

Parameter	Small-Scale Fluted Disc (5-200kg/h)	Medium-Scale Hammer Type (200-1000kg/h)	Large-Scale Impact Type (1000-8000kg/h)	Roller Type (100-500kg/h)
Pulverization Type	Fluted Disc (Fine Grinding)	Hammer (Impact Crushing)	Impact (High-Speed Impact)	Roller (Compression Crushing)
Production Capacity	5-200 kg/h	200-1000 kg/h	1000-8000 kg/h	100-500 kg/h
Feeding Granularity	≤6 mm	≤10 mm	≤20 mm	≤12 mm
Crushing Fineness (Mesh)	20-120 (adjustable)	12-120 (adjustable)	12-80 (adjustable)	12-60 (adjustable)
Spindle Rotation Speed	4500-6000 r/min	3400-3800 r/min	1400-2900 r/min	1800-3400 r/min
Motor Power	2.2-11 kW (Electric)	11-18.5 kW (Electric)	18.5-55 kW (Electric)	4-11 kW (Electric/Diesel)
Voltage	220V/380V, 50/60Hz	380V, 50/60Hz	380V, 50/60Hz	220V/380V (Electric)/Diesel
Crushing Chamber Material	Stainless Steel (304)	Wear-Resistant Manganese Steel	Alloy Steel	Wear-Resistant Manganese Steel
Dust Collection Efficiency	≥99%	≥99%	≥99%	≥98%
Machine Dimensions (L×W×H)	520×510×1000 mm	700×670×1370 mm	1350×1000×2100 mm	650×570×1240 mm
Machine Weight	100-300 kg	300-500 kg	500-1500 kg	200-400 kg
Noise Level	≤70 dB	≤75 dB	≤80 dB	≤75 dB
Applicable Raw Materials	Traditional Chinese medicine, food ingredients, chemical powders	Straw, rice husk, stones, ores	Rocks, concrete, asphalt, large ores	Minerals, ores, building debris
Compliance Certifications	CE, RoHS, ISO, GMP	CE, RoHS, ISO	CE, RoHS, ISO	CE, RoHS
Warranty	1 year (core components)	1 year (core components)	1.5 years (core components)	1 year (core components)
Key Features	Fine grinding, hygienic, easy to clean	High efficiency, multi-material compatibility	Large output, stable operation, industrial-grade	Low power consumption, easy operation

Core Components

Pulverization Chamber

The "heart" of the Pulverizer Crushes, where the main size reduction occurs. It is equipped with specialized crushing components tailored to different material types: hammer heads (for brittle/hard materials), fluted discs (for fine grinding), rollers (for compression crushing), or blades (for fibrous materials). The chamber is made of high-quality wear-resistant steel (manganese steel or alloy steel) with a smooth inner wall to avoid material accumulation and reduce wear. The gap between crushing components is adjustable to precisely control the final particle size, meeting diverse customer needs.

Feeding System

Composed of a feeding hopper, screw conveyor, and quantitative feeder, ensuring uniform feeding and preventing material blockage. The quantitative feeder adopts frequency conversion speed regulation, allowing operators to adjust the feeding amount according to raw material characteristics and production requirements. For sticky materials (e.g., plastic scraps), an anti-blocking device is installed to ensure smooth operation and avoid downtime.

Drive System

Provides the necessary power for the machine, available in electric motor or diesel engine versions. Electric motors (2.2-55kW, industrial models up to 55kW) are suitable for fixed production sites with stable power supply, while diesel engines are ideal for outdoor or remote areas (e.g., mining sites, construction sites) without power. The drive system uses high-precision gear transmission or belt transmission, ensuring stable operation, low noise (≤75dB), and high energy utilization.

Classification & Dust Collection System:

Classification System: Equipped with a replaceable stainless steel screen (12-120 mesh) or air classifier to control the final particle size-screen models are suitable for general pulverization, while air classifiers are used for ultra-fine powder production. The screen is easy to replace, allowing quick switching between different particle sizes.

Dust Collection System: Integrated bag-type dust collector or cyclone dust collector, which captures dust generated during pulverization, preventing environmental pollution and material waste. The dust collection efficiency is ≥99%, meeting global environmental protection standards and local emission regulations.

Why Choose Us

Industry-Specific Customization & High Compatibility:

We offer fully tailored solutions for pharmaceutical, food, mining, chemical, and agricultural industries-each model is optimized for specific raw materials and production needs. For example, pharmaceutical models adopt stainless steel construction and low-temperature pulverization to retain material efficacy; mining models are equipped with high-wear components to handle hard materials. The machine is compatible with all mainstream raw materials and can be customized with production capacity, particle size, and power according to customer requirements, ensuring a perfect match for actual production needs.

High-Quality & Durable Construction:

Our Pulverizer Crushes use high-quality components-German alloy steel crushing components, stainless steel (304/316) pulverization chamber, and high-precision gear transmission. The wear-resistant hammer heads (composite overlay) have a service life of 3-5 years, and the machine has a low failure rate (≤0.4% per 1000 hours of operation)[3][6]. All products comply with CE, RoHS, ISO, and GMP standards (for food/pharmaceutical models), ensuring stable performance and global export compliance, avoiding customs barriers.

Cost-Effective & Quick Return on Investment:

With reasonable initial investment, low operation costs, and energy-saving design, our Pulverizer Crushes help customers achieve return on investment in 1-2 years. The precise material control reduces waste by 45-60%, and the energy-saving motor reduces power consumption by 15-20%, further lowering operational costs. For customers with their own waste raw materials, the machine can convert low-value waste into high-value products, increasing revenue and realizing resource recycling.
