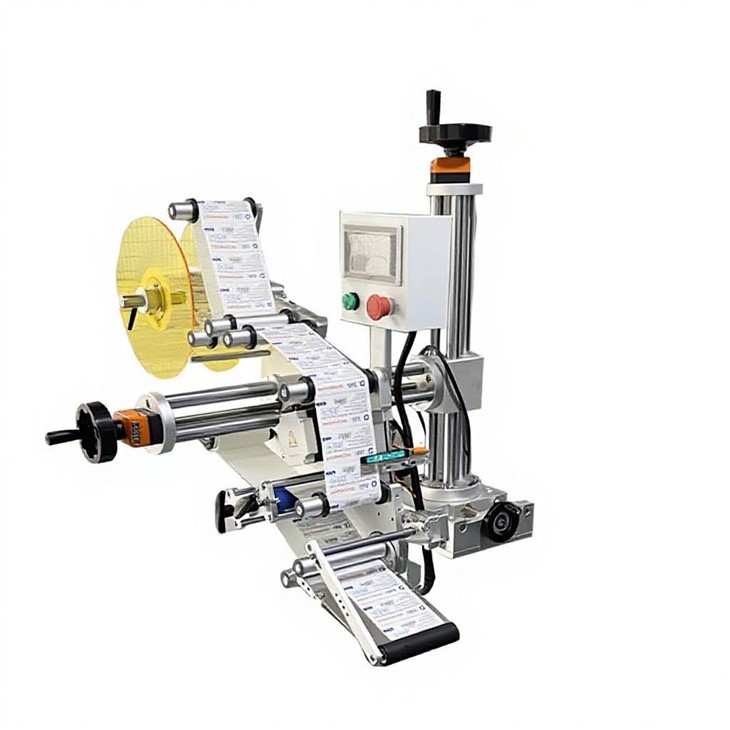

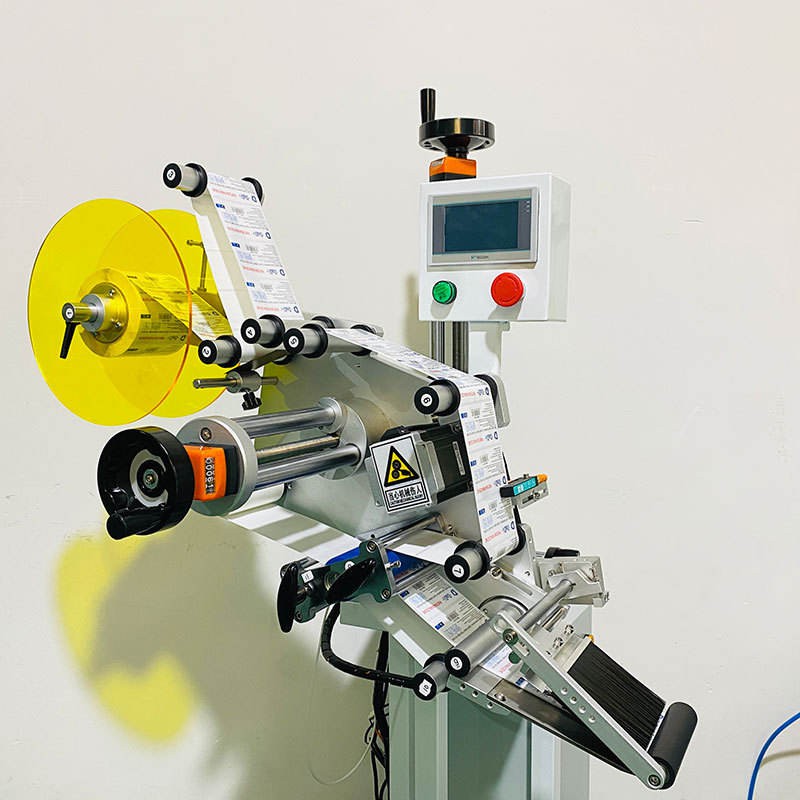

Flat Labeling Machine

Our Flat Labeling Machine covers two mainstream models: semi-automatic desktop flat labeling machine and fully automatic online flat labeling machine. All equipment adopts industrial-grade structural design and strict quality control standards, featuring stable operation, strong compatibility and long service life. The whole machine frame is made of thickened stainless steel and aluminum alloy materials, which are anti-corrosion, wear-resistant and easy to clean, complying with industrial production and food-grade hygiene standards.

The core working system consists of a photoelectric detection module, servo labeling drive system, synchronous conveyor mechanism and intelligent control panel. The high-sensitivity photoelectric sensor realizes automatic product induction, effectively avoiding empty labeling and missing labeling issues. The servo motor provides stable and adjustable labeling speed, keeping the conveyor operation and label output fully synchronized to ensure uniform labeling tension and flat attachment. The equipment supports one-key parameter setting for labeling speed, label length, product spacing and labeling position, realizing fast switching between different products and label specifications without complicated mechanical adjustment.

Technical Parameter Table

Technical Parameters	Unit	Specification Range
Labeling Accuracy	mm	±1 (excluding product and label tolerance)
Labeling Speed	pcs/min	Semi-automatic: 20-80; Fully automatic: 80-180
Applicable Label Length	mm	6-250 customizable
Applicable Label Width	mm	20-160 customizable
Applicable Product Size	mm	Length 40-400, Width 40-300, Height 15-150
Label Roll Inner Diameter	mm	76 standard
Label Roll Outer Diameter	mm	≤280
Applicable Label Material	-	Paper, PVC, PET, Transparent adhesive sticker
Power Supply	V/Hz	220V 50/60Hz universal
Total Power	kW	0.6-1.2
Control System	-	PLC + Touch Screen + Photoelectric Sensor
Operation Mode	-	Automatic induction continuous labeling
Machine Dimension	mm	1600×780×1400 standard
Net Weight	kg	180 standard

Core Advantages

High Precision & Flawless Labeling Effect

Equipped with high-sensitivity photoelectric sensing and synchronous servo control system, the Flat Labeling Machine maintains labeling accuracy within ±1mm. It achieves fully flat, bubble-free and wrinkle-free labeling on all planar products, completely avoiding offset, tilting and uneven attachment problems caused by manual operation, effectively improving product appearance grade and qualification rate.

High Efficiency & Significant Labor Saving

The automatic continuous labeling mode greatly improves production efficiency, with maximum output up to 180 pieces per minute, which is 3 to 5 times higher than manual operation. It replaces repeated manual labeling work, reducing labor input and effectively solving problems of slow production speed and insufficient manpower in peak production seasons.

Wide Compatibility & Strong Versatility

This machine supports all common flat products and various adhesive label materials. It can freely switch labeling specifications for cartons, boxes, trays and flat packaging materials, meeting multi-product mixed production needs. The adjustable structural design adapts to different product sizes without frequent mold replacement, improving production flexibility.

Intelligent Operation & Simple Maintenance

Humanized touch screen control interface supports one-key parameter setting and recipe storage. Different production parameters can be saved for quick switching, greatly shortening product changeover time. The modular structural design reduces internal failure points, with few wearing parts and simple daily cleaning and maintenance, lowering long-term operating costs.

why choose us

Flexible Customization & Wide Application Scenarios: We provide personalized customization services including labeling speed adjustment, size modification, coding function integration and desktop/floor type switching. The machine is suitable for small-batch flexible production and large-scale assembly line standardized production, covering multiple industries such as food, daily chemicals, electronics and logistics packaging.

International Standard Certification & Compliance: All Flat Labeling Machines comply with CE, ISO and global industrial safety standards. The standardized labeling process meets international product packaging specification requirements, helping customers smoothly pass factory audits and global product certification, facilitating cross-border product sales.

Excellent Cost Performance & Fast ROI: Compared with expensive multi-functional integrated labeling equipment, this flat labeling machine has low procurement cost, low energy consumption and high production efficiency. It effectively reduces manual labor costs and defective product loss, bringing stable and obvious economic benefits for small, medium and large manufacturing enterprises.
