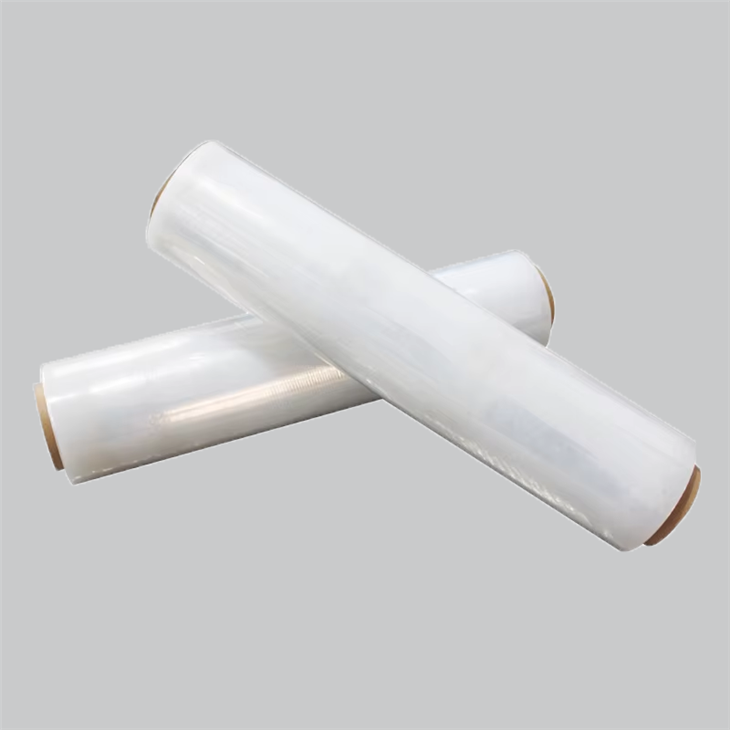

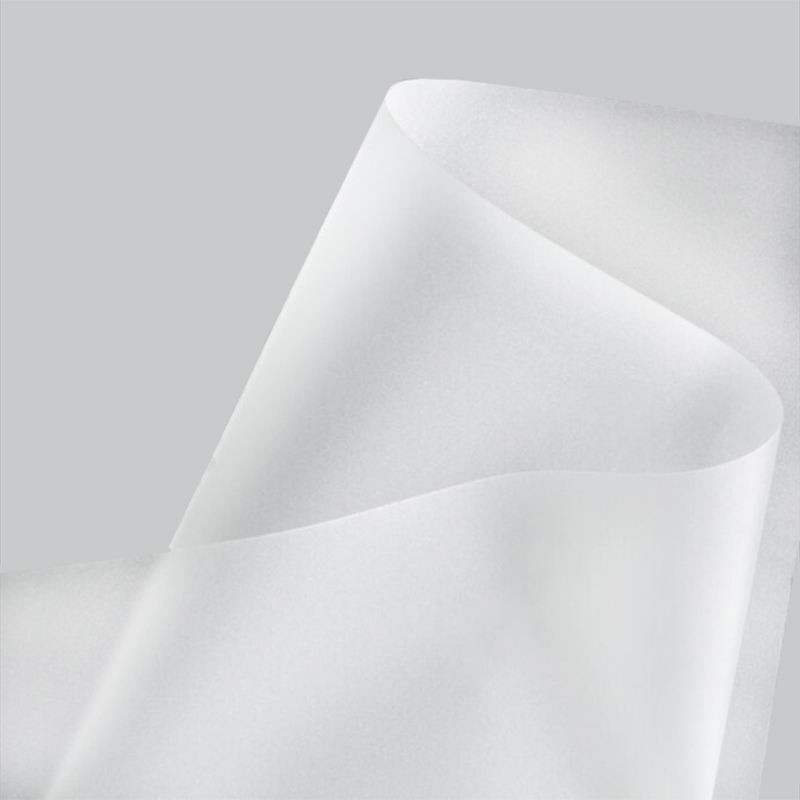

TPU Film

TPU Film (Thermoplastic Polyurethane Film) is a high-performance, versatile polymer film renowned for its unique combination of rubber-like elasticity and plastic processability. Made from the polymerization of diisocyanates, macromolecular polyols, and chain extenders, it is a green, non-toxic material free of plasticizers, widely used in automotive, medical, textile, footwear, electronics, packaging, and outdoor sports industries. TPU Film stands out for its excellent wear resistance, wide temperature adaptability, waterproof and moisture-permeable properties, and recyclability, making it an ideal alternative to traditional films like PVC and EVA. As global demand for eco-friendly, high-performance materials grows and strict environmental regulations (such as EU REACH and US California 65 Act) become more prevalent, TPU Film has become a core material for enterprises pursuing sustainability and product upgrading, driving its rapid market expansion with a global compound annual growth rate of 7%.

Send Inquiry

Product Introduction

TPU Film

Our TPU Film covers a comprehensive range of products, including polyester-based TPU Film, polyether-based TPU Film, waterproof and moisture-permeable TPU Film, transparent TPU Film, colored TPU Film, and functional TPU Film (UV-resistant, conductive, anti-yellowing), tailored to the specific needs of different industries. All films are manufactured with strict quality control standards, using high-grade TPU resin and advanced production technology to ensure consistent performance, stable quality, and compliance with international safety and environmental standards.

Technical Parameter Table

Parameter Category	Specification Details	Test Standard	Typical Value	Customizable Range
Material Type	Polyester-based TPU, Polyether-based TPU	ASTM D412	Polyester/Polyether	Both types available
Thickness	Ultra-thin to thick film	ASTM D374	0.012mm - 5.0mm	0.008mm - 10.0mm
Width	Standard and custom width	ASTM D1204	1000mm - 1524mm (60 inches)	500mm - 2000mm
Shore Hardness	Soft to hard grades	ASTM D2240	80A - 95A	70A - 75D
Tensile Strength	Mechanical strength	ASTM D412	30 - 60 MPa	25 - 70 MPa
Elongation at Break	Flexibility and stretchability	ASTM D412	300% - 800%	200% - 900%
Temperature Resistance	Operating temperature range	ASTM D1598	-40℃ to 120℃	-50℃ to 150℃ (short-term)
Transparency	Light transmission rate	ASTM D1003	88% - 92%	85% - 95%
Haze	Clarity performance	ASTM D1003	< 3%	< 2% (high clarity option)
Waterproof Performance	Water pressure resistance	ASTM D751	10000 mm H2O	5000 - 50000 mm H2O
UV Resistance	Anti-yellowing and weather resistance	QUV Test	≥ 4 grade (anti-yellowing)	5+ years (with UV inhibitors)
Environmental Certification	Safety and eco-friendly standards	FDA, RoHS, REACH, ISO 10993	Compliant with all standards	Custom certifications available
Packaging	Roll packaging	Industry Standard	30 - 50 kg/roll	Custom packaging weight

Core Advantages

Exceptional Mechanical Properties

Adopting advanced electronic sensor technology and intelligent counting algorithms, the machine achieves counting accuracy of ≥99.9%, completely avoiding manual counting errors (underfilling, overfilling) and reducing product waste and compliance risks. It ensures each package contains the exact number of pills required, meeting strict pharmaceutical industry standards.

Wide Temperature Adaptability

Unlike PVC film which becomes brittle at low temperatures and PE film which deforms at high temperatures, TPU film maintains excellent flexibility and stability in a wide temperature range from -40℃ to 120℃.

Environmental Friendliness and Safety

TPU film is free of halogens, phthalates, BPA, and other toxic substances, and does not release harmful gases when burned or incinerated. It is recyclable and can be physically granulated for reuse (recovery rate up to 90%), and some bio-based TPU films can be partially degraded under industrial composting conditions. It has passed FDA, RoHS, and REACH certifications, making it safe for medical, food packaging, and skin-contact applications.

Versatile Functionality and Customization

TPU film can be customized with various functions according to customer needs, including waterproof and breathable, anti-static, anti-fungal, anti-bacterial, self-healing, and adhesive backing. It can also be produced in different colors, surface finishes (glossy, matte, anti-glare), and thicknesses, and supports integration with fabrics, metals, glass, and other materials through lamination, hot pressing, and other processes.

Applications

TPU film's versatility makes it widely used in various industries, including but not limited to:

Medical: Wound dressings, surgical drapes, medical gloves, hemostats

Automotive: Airbag door covers, dashboard skins, door panels, window seals, seat covers

Textile: Outdoor clothing, ski suits, seamless underwear, waterproof shoes, tents

Electronics: Mobile phone screen protectors, flexible circuit substrates, sensor patches, wearable devices

Packaging: Electronic product packaging, air column bags, vacuum packaging, food packaging

Other: Inflatable products ,kite bladders, conveyor belts, waterproof tapes
