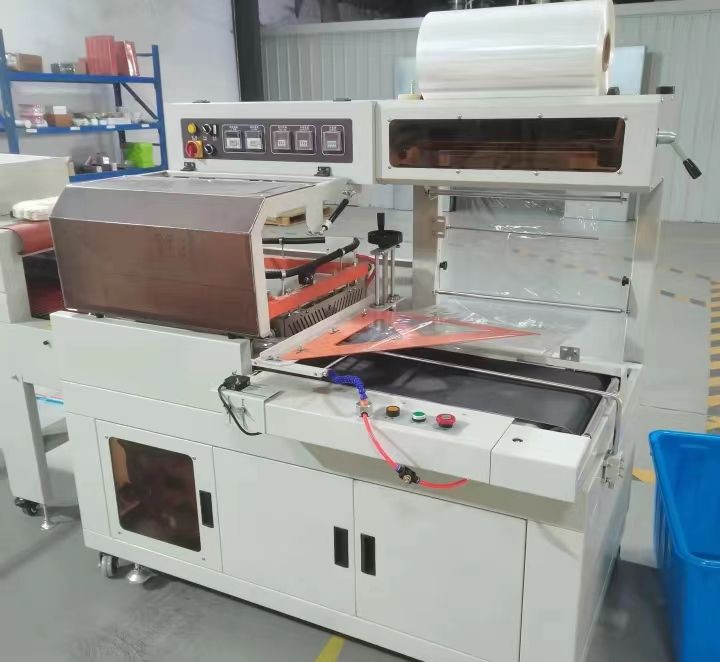

Automatic Heat Shrink Packaging Machine
An automatic heat shrink packaging machine is a high-efficiency, automated packaging equipment designed to wrap products with heat shrinkable film (PVC, PE, POF, PP) and use controlled heat to shrink the film tightly around the product, forming a compact, transparent, and protective package. It is an indispensable core device in the food, beverage, electronics, cosmetics, pharmaceutical, and logistics industries, widely used for packaging single products (bottles, cans, boxes), grouped products (multi-pack beverages, gift sets), and irregularly shaped items. As global demand for aesthetic, protective, and efficient packaging continues to rise, the automatic heat shrink packaging machine has become a key investment for manufacturers, entrepreneurs, and enterprises looking to optimize their packaging lines. Unlike traditional manual shrink packaging, modern automatic models integrate automatic feeding, film wrapping, sealing, heat shrinking, and discharging into one seamless production line, achieving uniform shrinkage, high packaging efficiency, and consistent product appearance.
Technical Parameter Table
|
Parameter |
Semi-Automatic (Small-to-Medium) |
Fully Automatic (Medium-to-Large) |
Industrial-Grade (High-Volume) |
|---|---|---|---|
|
Production Capacity |
100-500 packages/hour |
500-3000 packages/hour |
3000-10000 packages/hour |
|
Applicable Film Types |
PVC, PE, POF film (thickness: 0.01-0.1mm) |
PVC, PE, POF, PP film (thickness: 0.01-0.15mm) |
PVC, PE, POF, PP film (thickness: 0.01-0.2mm) |
|
Film Width Range |
50-300mm |
50-500mm |
100-800mm |
|
Product Size Range |
Length: 50-200mm; Width: 30-150mm; Height: 20-100mm |
Length: 50-400mm; Width: 30-250mm; Height: 20-200mm |
Length: 100-800mm; Width: 50-400mm; Height: 30-300mm |
|
Shrink Temperature |
80-180℃ (manual adjustment) |
80-200℃ (PID control, ±2℃ precision) |
80-200℃ (advanced PID control, ±1℃ precision) |
|
Sealing Temperature |
120-160℃ |
120-180℃ |
120-200℃ |
|
Conveyor Speed |
5-15 m/min (stepless adjustment) |
5-25 m/min (stepless adjustment) |
10-30 m/min (stepless adjustment) |
|
Power Supply |
220V single-phase, 3-8kW |
380V three-phase, 8-20kW |
380V three-phase, 20-50kW |
|
Air Pressure |
0.4-0.6MPa |
0.5-0.8MPa |
0.6-1.0MPa |
|
Machine Dimensions (L×W×H) |
1500×800×1600mm (floor-mounted) |
3000×1200×2000mm (floor-mounted) |
6000×2000×3000mm+ (industrial line) |
|
Machine Weight |
100-300kg |
300-1500kg |
1500-8000kg |
|
Automation Level |
Semi-automatic (auto sealing/shrinking, manual feeding) |
Fully automatic (integrated feeding to discharging) |
Fully automatic (continuous production, remote monitoring) |
|
Operator Requirement |
1-2 operators |
1-2 operators (supervision only) |
2-3 operators (line supervision + maintenance) |
|
Key Features |
Auto sealing/shrinking, simple operation, low cost, compact structure |
PLC touchscreen, auto feeding/detection, PID temperature control, uniform shrinkage |
Dual-motor drive, continuous production, remote fault diagnosis, integration with production lines |
Core Advantages
High Packaging Quality & Aesthetic Appearance
Equipped with precise PID temperature control and uniform air circulation, the machine ensures the film shrinks tightly and uniformly around the product, with no wrinkles, bubbles, or loose areas. The transparent shrink film enhances product display, making the package more attractive and improving brand image. The tight packaging also prevents dust, moisture, and damage during storage and transportation, extending product shelf life.
High Production Efficiency & Continuous Operation
Fully automatic and industrial-grade models can achieve production speeds of up to 10000 packages/hour, which is 10-15 times more efficient than manual packaging. The continuous production design ensures 24-hour stable operation, with no downtime between cycles, allowing businesses to fulfill large bulk orders quickly and meet tight delivery deadlines. For large-scale manufacturers, this means higher throughput and increased revenue.
Significant Labor Cost Savings
Traditional manual shrink packaging requires 3-5 operators per shift to complete feeding, film wrapping, sealing, and shrinking. In contrast, a fully automatic heat shrink packaging machine only needs 1-2 operators for supervision, reducing labor costs by 70-80%. Semi-automatic models also reduce labor requirements to 1-2 operators, lowering hiring and training costs-especially beneficial for small businesses and startups.
Energy-Saving & Cost-Effective Design
Our machines adopt energy-saving technologies such as variable-frequency motors and heat recovery systems, reducing energy consumption by 20-30% compared to traditional machines. The high qualification rate (≥99.8%) and automatic film tension control reduce film waste, while the long service life minimizes maintenance and replacement costs. For small businesses, our semi-automatic models offer an affordable entry point with low operational costs.
Why Choose Us?
High-Precision, Durable Construction:
Our machines are made of high-strength carbon steel and food-grade SUS304 stainless steel, with key components (sealing knife, conveyor belt) made of high-temperature resistant and wear-resistant materials (Teflon, CR12 steel) for long-term use[8][9]. The shrink tunnel is lined with high-temperature insulation cotton to reduce heat loss, and the fully enclosed structure avoids cross-contamination and ensures operator safety[5][8]. The rigid frame ensures stable operation even at maximum speeds, with a service life of 5-15 years.
Advanced Integrated Control System:
All fully automatic models are equipped with PLC touchscreen controls (Siemens/Omron/Delta components), programmable presets (up to 15+), automatic counting, and remote monitoring. The advanced PID temperature control system maintains consistent heating precision, ensuring uniform shrinkage and avoiding film damage or loose packaging[5]. High-end models support remote software upgrades and fault diagnosis, allowing you to adjust settings and troubleshoot without on-site intervention.
Customizable Production Solutions:
We offer tailored solutions according to your production needs-whether you need a semi-automatic model for small batches, a fully automatic machine for medium-scale production, or a large industrial line for mass production. We customize film feeding systems, shrink tunnel lengths, and cooling modules to match your product sizes, shapes, and film types (food, chemical, medical). The machine can also be integrated with filling, labeling, and sorting machines to form a complete packaging line.
