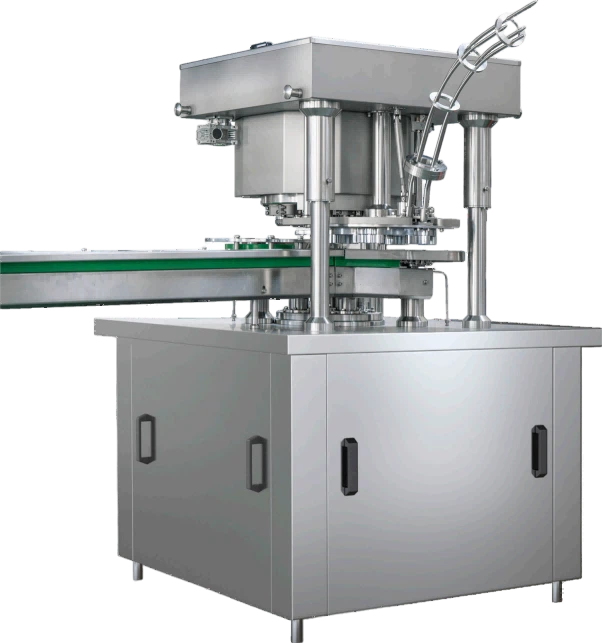

Canning Sealing Machine

A canning sealing machine is a high-precision, automated packaging equipment designed to hermetically seal the lids of cans, ensuring the freshness, safety, and long-term preservation of the contents inside. It is an indispensable core device in the food, beverage, chemical, pharmaceutical, and pet food industries, widely used for sealing metal cans (tin, aluminum), glass cans, and plastic cans containing fruits, vegetables, meat, seafood, soft drinks, beer, aerosols, and industrial chemicals. As global demand for packaged products with extended shelf life and strict hygiene standards continues to rise, the canning sealing machine has become a key investment for manufacturers, entrepreneurs, and enterprises looking to optimize their packaging lines. Unlike traditional manual sealing, modern canning sealing machines adopt advanced double seaming technology and automated control systems, achieving airtight, leak-proof seals while significantly improving production efficiency and reducing labor costs.

Technical Parameter Table

Parameter	Manual (Small-Scale)	Semi-Automatic (Small-to-Medium)	Fully Automatic (Medium-to-Large)	Industrial-Grade (High-Volume)
Production Capacity	5-10 cans/min (500-1000 cans/hour)	10-30 cans/min (600-1800 cans/hour)	30-150 cans/min (1800-9000 cans/hour)	150-600+ cans/min (9000-36000+ cans/hour)
Applicable Can Types	Metal cans (tin/aluminum), glass cans; round only	Metal, glass, plastic cans; round, small oval	Metal, glass, plastic cans; round, oval, rectangular	Metal, glass, plastic, aerosol cans; all shapes
Can Size Range	Diameter: 50-100mm; Height: 50-150mm	Diameter: 50-120mm; Height: 50-200mm	Diameter: 52.5-153mm; Height: 39-245mm	Diameter: 52.5-200mm; Height: 39-300mm
Sealing Method	Manual double seaming	Automatic double seaming; vacuum optional	Automatic double seaming; vacuum/heat sealing optional	Automatic double seaming/crimp sealing; vacuum/heat sealing
Vacuum Degree (Optional)	N/A	-0.06~-0.08MPa	-0.07~-0.09MPa	-0.08~-0.095MPa
Sealing Pressure	Manual adjustment (0.3-0.5MPa)	0.4-0.7MPa (pneumatic control)	0.5-0.8MPa (PID control)	0.6-1.0MPa (hydraulic-pneumatic control)
Power Supply	220V single-phase, 0.5-1.5kW	220V/380V, 1.5-5kW	380V three-phase, 5-15kW	380V three-phase, 15-50kW
Air Pressure	N/A (manual)	0.4-0.7MPa	0.5-0.8MPa	0.6-1.0MPa
Machine Dimensions (L×W×H)	500×400×800mm (table-mounted)	1200×800×1500mm (floor-mounted)	2500×1200×2000mm (floor-mounted)	5000×2000×3000mm+ (industrial line)
Machine Weight	20-50kg	100-300kg	300-1500kg	1500-10000kg
Automation Level	Manual (full operator control)	Semi-automatic (auto sealing, manual feeding)	Fully automatic (integrated feeding to discharging)	Fully automatic (continuous production, remote monitoring)
Operator Requirement	1 operator	1-2 operators	1-2 operators (supervision only)	2-3 operators (line supervision + maintenance)
Key Features	Simple structure, low cost, easy to move, suitable for small batches	Auto sealing, manual feeding, easy operation, vacuum optional	PLC touchscreen, auto feeding/detection, PID control, high qualification rate (≥99.8%)	Dual-motor drive, continuous production, X-ray detection, integration with production lines

Core Advantages

High Sealing Quality & Airtightness, Extended Shelf Life

Equipped with precise double seaming technology and PID pressure control, the machine forms a tight, airtight seal between the lid and can body, preventing air, moisture, and contaminants from entering. Vacuum models further remove oxygen, preventing oxidation and microbial growth, extending the shelf life of perishable products by 2-3 times. The sealing quality detection system ensures a qualification rate of over 99.8%, eliminating leaks and reducing product waste.

High Production Efficiency & Continuous Operation

Fully automatic and industrial-grade models can achieve production speeds of up to 600+ cans per minute, which is 10-20 times more efficient than manual sealing. The continuous production design ensures 24-hour stable operation, with no downtime between cycles, allowing businesses to fulfill large bulk orders quickly and meet tight delivery deadlines. For large-scale manufacturers, this means higher throughput and increased revenue.

Significant Labor Cost Savings

Traditional manual sealing requires 5-10 operators per shift to complete feeding, positioning, and sealing. In contrast, a fully automatic canning sealing machine only needs 1-2 operators for supervision, reducing labor costs by 70-80%. Semi-automatic models also reduce labor requirements to 1-2 operators, lowering hiring and training costs-especially beneficial for small businesses and startups.

Versatility & Customization Capabilities

The machine supports multiple can types (metal, glass, plastic), sizes (diameter 52.5-200mm), and shapes (round, oval, rectangular), making it suitable for diverse products (food, beverages, chemicals, medical products. It can be customized with different seaming chucks, rollers, and vacuum modules to match specific product requirements. The quick-change mold design allows for easy adjustment between different can sizes, reducing downtime.

Easy Operation & Low Maintenance

The intuitive LCD touchscreen and simple interface make the machine easy to operate-even operators with no prior experience can master it in 1-2 days. The modular design simplifies maintenance: core components (seaming rollers, chuck, vacuum pump) are easy to disassemble and replace, and the machine is equipped with real-time fault alerts to help operators quickly identify and solve problems. The food-grade stainless steel construction is easy to clean, meeting hygiene standards and reducing maintenance costs.

Why Choose Us?

High-Precision, Durable Construction:

Our machines are made of high-strength carbon steel and food-grade SUS304 stainless steel, with seaming rollers made of CR12 steel or tungsten steel (wear-resistant and corrosion-resistant). The seaming chuck is coated with a non-stick layer to prevent scratches, and the fully enclosed structure avoids cross-contamination. The rigid frame ensures stable operation even at maximum speeds, with a service life of 5-15 years.

Advanced Integrated Control System:

All fully automatic models are equipped with PLC touchscreen controls (Siemens/Omron/Delta components), programmable presets (up to 15+), automatic counting, and remote monitoring. The advanced PID pressure control system maintains consistent sealing force, ensuring no leaks or can deformation. High-end models support remote software upgrades and fault diagnosis, allowing you to adjust settings and troubleshoot without on-site intervention.

Customizable Production Solutions:

We offer tailored solutions according to your production needs-whether you need a manual machine for small batches, a semi-automatic model for startups, or a large industrial line for mass production. We customize seaming chucks, rollers, and vacuum modules to match your can sizes, shapes, and product types (food, chemical, medical). The machine can also be integrated with filling, sterilization, and labeling machines to form a complete packaging line.

Energy-Saving & Cost-Effective Design:

Our machines adopt energy-saving technologies such as variable-frequency motors and heat recovery systems, reducing energy consumption by 20-30% compared to traditional machines. The high qualification rate (≥99.8%) and automatic waste rejection reduce product waste, while the long service life minimizes maintenance and replacement costs. For small businesses, our manual and semi-automatic models offer an affordable entry point with low operational costs.
