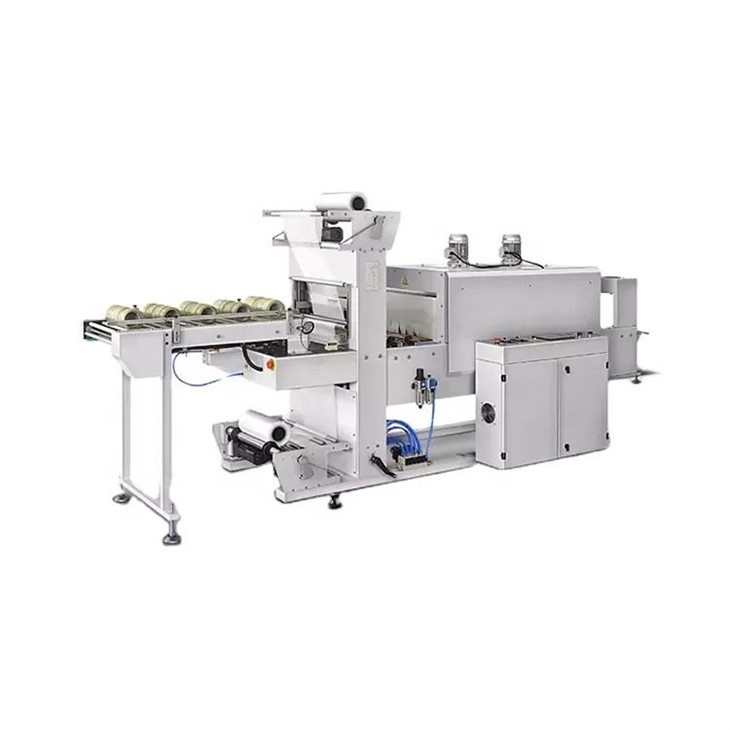

Heat Shrink Film Packaging Machine
Heat Shrink Packaging Machine
The core working principle of a heat shrink packaging machine relies on the thermal shrinkage property of heat-shrinkable films: these films are specially stretched during production, and when heated to a specific temperature (80-200℃), their molecular chains move, allowing the film to "remember" and return to its original pre-stretched state, generating shrinkage force to tightly wrap the product. The machine completes the entire packaging process through a series of automated or semi-automated steps, ensuring that the film adheres closely to the product surface without wrinkles, bubbles, or loose areas-creating a protective layer that enhances product appearance, prevents dust and moisture, and facilitates storage and transportation.
Technical Parameter Table
|
Parameter |
Manual (Small-Scale) |
Semi-Automatic (Small-to-Medium) |
Fully Automatic (Medium-to-Large) |
Industrial-Grade (High-Volume) |
|
Production Capacity |
50-100 packages/hour |
100-500 packages/hour |
500-3000 packages/hour |
3000-10000 packages/hour |
|
Applicable Film Types |
PVC, PE, POF film (thickness: 0.01-0.1mm) |
PVC, PE, POF, PP film (thickness: 0.01-0.15mm) |
PVC, PE, POF, PP, PET film (thickness: 0.01-0.15mm) |
PVC, PE, POF, PP, PET, PLA film (thickness: 0.01-0.2mm) |
|
Film Width Range |
50-200mm |
50-300mm |
50-500mm |
100-800mm |
|
Product Size Range |
Length: 50-150mm; Width: 30-100mm; Height: 20-80mm |
Length: 50-200mm; Width: 30-150mm; Height: 20-100mm |
Length: 50-400mm; Width: 30-250mm; Height: 20-200mm |
Length: 100-800mm; Width: 50-400mm; Height: 30-300mm |
|
Shrink Temperature |
80-180℃ (manual adjustment) |
80-180℃ (manual adjustment, ±3℃ precision) |
80-200℃ (PID control, ±2℃ precision) |
80-200℃ (advanced PID control, ±1℃ precision) |
|
Sealing Temperature |
120-160℃ (manual) |
120-160℃ |
120-180℃ |
120-200℃ |
|
Conveyor Speed |
5-10 m/min (manual adjustment) |
5-15 m/min (stepless adjustment) |
5-25 m/min (stepless adjustment) |
10-30 m/min (stepless adjustment) |
|
Power Supply |
220V single-phase, 2-5kW |
220V/380V, 3-8kW |
380V three-phase, 8-20kW |
380V three-phase, 20-50kW |
|
Air Pressure |
N/A (manual) |
0.4-0.6MPa |
0.5-0.8MPa |
0.6-1.0MPa (6-8 kg/cm²) |
|
Machine Dimensions (L×W×H) |
800×600×1200mm (table-mounted) |
1500×800×1600mm (floor-mounted) |
3000×1200×2000mm (floor-mounted) |
6000×2000×3000mm+ (industrial line) |
|
Machine Weight |
50-100kg |
100-300kg |
300-1500kg |
1500-8000kg |
|
Automation Level |
Manual (full operator control) |
Semi-automatic (auto sealing/shrinking, manual feeding) |
Fully automatic (integrated feeding to discharging) |
Fully automatic (continuous production, remote monitoring) |
|
Operator Requirement |
1 operator |
1-2 operators |
1-2 operators (supervision only) |
2-3 operators (line supervision + maintenance) |
|
Key Features |
Simple structure, low cost, easy to move, suitable for small batches |
Auto sealing/shrinking, simple operation, low cost, compact structure, easy maintenance |
PLC touchscreen, auto feeding/detection, PID temperature control, uniform shrinkage, 100+ parameter presets |
Dual-motor drive, continuous production, remote fault diagnosis, integration with production lines, dual-channel optional |
Core Advantages
Easy Operation & Low Maintenance
The intuitive LCD touchscreen and simple interface make the machine easy to operate-even operators with no prior experience can master it in 1-2 days. The modular design simplifies maintenance: core components (heating tubes, fans, sealing knife) are easy to disassemble and replace, and the machine is equipped with real-time fault alerts to help operators quickly identify and solve problems[5][6]. The food-grade stainless steel construction is easy to clean, meeting hygiene standards and reducing maintenance time and costs.
Energy-Saving & Cost-Effective
Our machines adopt energy-saving technologies such as variable-frequency motors and heat recovery systems, reducing energy consumption by 20-40% compared to traditional machines[5]. The intelligent film length adjustment and waste recycling system reduce film waste, while the long service life minimizes maintenance and replacement costs. For small businesses, our manual and semi-automatic models offer an affordable entry point with low operational costs, helping you achieve quick return on investment.
Uniform Shrinkage & High-Quality Packaging
The advanced air circulation system and PID temperature control ensure uniform hot air distribution in the shrink tunnel, making the film shrink tightly around the product with no wrinkles, bubbles, or uneven areas. The Teflon-coated sealing knife ensures clean, smooth seals, preventing film sticking and improving packaging appearance. This consistency enhances product competitiveness and brand image-many customers report that shrink packaging increases product shelf appeal and reduces return rates.
24/7 After-Sales Support & Global Service
We offer a 6-month to 2-year warranty on core components (2 years for industrial models), plus free installation, on-site debugging, and 24-hour technical support. Our global service network ensures timely assistance-48-hour on-site service for industrial models-minimizing downtime and ensuring your production line runs smoothly. We also provide free training, detailed operation manuals, and a global supply of spare parts for quick replacement, solving your after-sales worries.
Application
Food & Beverage-Specific Machine:
Optimized for food and beverage packaging (bottles, cans, snacks, gift sets). Adopts food-grade SUS304 stainless steel, fully enclosed heating tunnel, and meets FDA, HACCP, and ISO standards. Equipped with precise temperature control to avoid food damage and extend shelf life-when combined with multi-layer composite film, it can extend the shelf life of fresh food by 1-3 times.
Electronics & Cosmetics Machine:
Designed for fragile products (electronics, cosmetics, toys). Features gentle heat shrinkage and a cooling module to prevent product damage. The transparent film enhances product display, making the product more attractive on the shelf. It can also be integrated with a labeling system to complete packaging and labeling in one step.
Medical-Grade Machine:
Specialized for medical products (syringes, medical devices, reagents). Adopts dust-free design, sterilization module, and meets GMP and FDA standards (including FDA DSCSA compliance for serialized coding). Ensures strict hygiene and protective packaging, with anti-counterfeiting functions to prevent product tampering.
Logistics & Industrial Machine:
Suitable for packaging large or irregular industrial parts, pallets, and logistics packages. Features a reinforced conveyor belt and high-pressure sealing to ensure packaging stability during transportation, reducing product damage by 30-50%.
