Hot Melt Sealing Machine
hot melt sealing machine

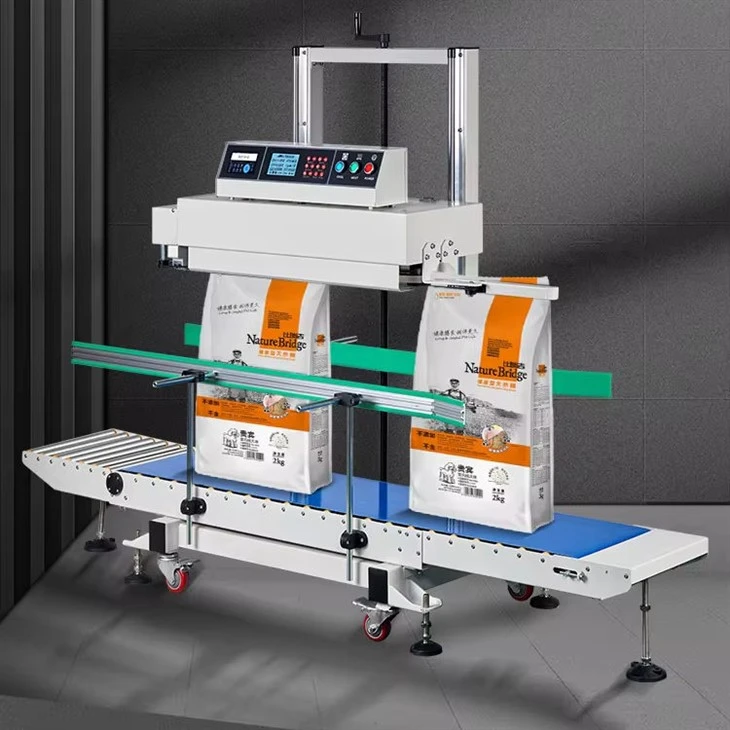

Heavy-duty vertical band sealer with dual-motor sync and integrated coding-seals jumbo bags up to 100×100cm and 50kg with pinpoint accuracy, one pass.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | Smart Semi‑Automatic Vertical Band Sealer 350LP |
| Sealing Speed | 0 – 15 m/min (adjustable) |
| Sealing Width | 10 mm |
| Sealing Height Range | 100 – 1000 mm |
| Max Bag Size | 1000 × 1000 × 20c |
| Conveyor Load Capacity | 30 kg / 50 kg (model dependent) |
| Temperature Range | 0 – 300℃ (dual-zone PID control) |
| Voltage | 220V / 50-60Hz |
| Installed Power | 1500 – 1750 W |
| Machine Dimensions (L×W×H) | 2160 × 620 × 1540 mm |
| Machine Weight | 118 – 125 kg |
| Sealing Belt Specs | 1450 × 18 × 0.22 mm (PTFE coated) |
| Conveyor Belt Specs | 3300 × 320 × 2 mm |
| Heating Tube | 350W × 4 (150 × 10mm each) |
| Motor | 24V / 200W / 30K |
Product Features
Zero-Misalignment Sealing – Even on Jumbo Bags
Traditional sealers rely on mechanical gears and chains that wear out, causing crooked seals on large bags. Our gear motor + stepper motor dual-drive system synchronizes upper and lower belts electronically-not mechanically. The result: dead-straight, consistent seals every time, with dramatically fewer rejects and less downtime.
Built for Heavy-Duty Industrial Environments
Seals bags weighing up to 50kg-ideal for:
25–50kg flour, sugar, grain, and feed bags
Chemical powders, fertilizers, and resin pellets
The vertical orientation prevents spills from liquids or fine powders, keeping your work area clean and safe.
Versatile Material Compatibility
Dual PID controllers deliver stable heat from 0–300℃, so you can switch between:
PE, PP, laminated films
Mylar, cellophane, and other heat-sealable thermoplastics
Adjustable pressure rollers and PTFE non-stick belts ensure a strong, wrinkle-free seal on every material.
One Machine, Two Jobs – Seal & Code Simultaneously
Eliminate separate printing steps. Built-in coding options let you print batch numbers, expiry dates, or lot codes directly on the seal line during sealing:
Hot‑stamp coding – crisp 2-line text (up to 20 characters)
Inkjet printing – high-speed variable data
No extra equipment, no extra labor.
Product Applications
| Industry | Specific Products |
|---|---|
| Food Processing | 25kg/50kg flour, sugar, rice, frozen foods, spices, coffee |
| Agriculture | Seed bags, animal feed, grain, fertilizer |
| Chemicals | Powdered chemicals, detergents, resins, pigments |
| Construction Materials | Cement, sand, gypsum, plaster bags |
| E-Commerce Fulfillment | Heavy-duty shipping pouches, bulk mailing bags |
Product Components
| Component | Function |
|---|---|
| Dual-Motor Drive System | Gear motor + stepper motor for electronic belt synchronization |
| Digital PID Controllers | Dual-zone independent temperature management (0–300℃) |
| PTFE Sealing Belts | Non‑stick woven belts for clean, consistent seals |
| Motorized Conveyor | Speed‑matched to sealing rate; height‑adjustable stand |
| Hot‑Stamp / Inkjet Printer | Optional integrated coding unit for batch/date/line printing |
| Knurled Pressure Rollers | Adjustable pressure for varying bag thickness |
| Heating Tubes | 350W × 4 ceramic‑insulated elements |
| Emergency Stop & Safety Guard | Immediate shutdown and operator protection |
Quality Control & Manufacturing Process
Three-Phase Quality Assurance:
Incoming Materials Inspection – All motors, controllers, and heating elements verified before assembly
In-Process Testing – Each assembly stage checked for alignment, belt tension, and electrical safety
Final Factory Testing – Full operational test with sample bags of varied sizes and materials
Manufacturing Standards:
ISO 9001 certified production processes
CE certified electrical systems
Premium component sourcing for long‑term reliability
FAQ
Q: What is the maximum bag size and weight this machine can handle?
A: Up to 100×100cm bags, with conveyor supporting 30–50kg loads depending on model.
Q: Can it seal liquid-filled or powder-filled bags?
A: Yes-the vertical orientation is specifically designed for liquids, powders, and granular products that would spill in horizontal sealers.
Q: How does the dual-motor system improve sealing quality?
A: It synchronizes upper and lower belts electronically, eliminating the misalignment common with mechanical chain/gear drives-critical for large bags where even slight drift causes crooked seals.
Q: What types of coding/printing are available?
A: Options include hot‑stamp coding (2 lines, up to 20 characters/line) for batch/date, and inkjet printing for high-speed variable data.
Q: What materials can this machine seal?
A: PE, PP, laminated films, cellophane, Mylar, and most heat‑sealable thermoplastics.
Q: What maintenance is required?
A: Regular cleaning of PTFE sealing belts; periodic checking of belt tension and replacement of heating tubes (typical lifespan 2000+ hours).
Q: Can the sealing height be adjusted for different bag sizes?
A: Yes-the conveyor stand is height‑adjustable from 100 to 1000mm, and the pressure rollers adjust automatically for varied bag thickness.
Q: What is the typical ROI period?
A: Most customers achieve ROI within 6–12 months through reduced rejects, eliminated secondary coding steps, and increased packaging line speed.
