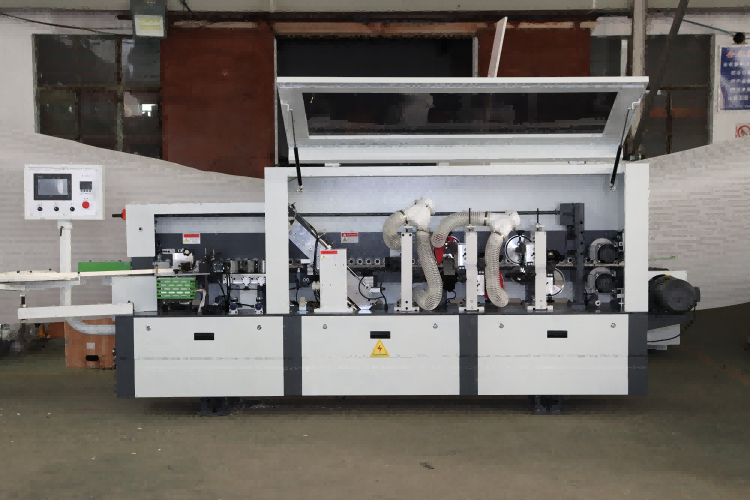

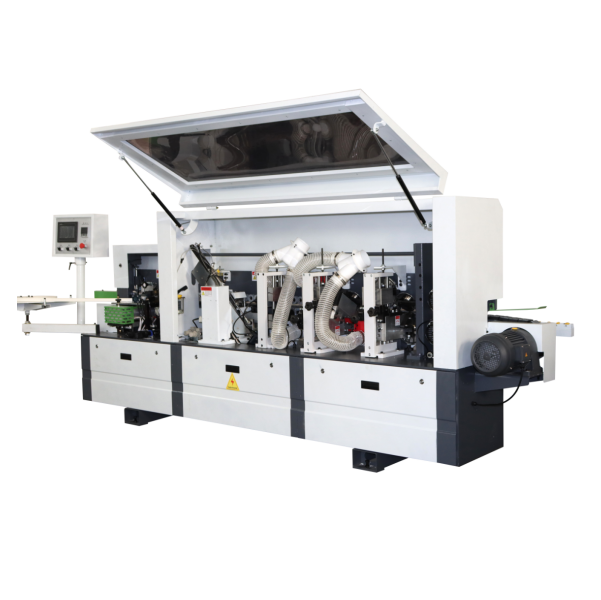

Automatic Edge Banding Machine
Automatic Edge Banding Machine
An automatic edge banding machine is a sophisticated woodworking equipment specially developed for edge processing of wooden panels, which can automatically complete a series of processes from board feeding to finished product output without excessive manual intervention. Its core function is to bond edge banding materials (PVC, ABS, melamine, solid wood veneer, etc.) to the edges of various boards (density boards, fiber boards, particle boards, solid wood panels, etc.), thereby enhancing the board's appearance, protecting the edge from moisture and damage, and improving the overall structural strength and service life of the product. Equipped with intelligent control systems (such as Delta PLC control) and high-precision processing components, automatic edge banding machines can adapt to different board thicknesses, edge banding widths, and material types, achieving stable, efficient, and uniform edge banding effects.
Technical Parameter Table
|
Model |
Processing Range |
Feeding Speed (m/min) |
Total Power (kw) |
Glue Pot |
Control System |
Working Pressure (MPa) |
Voltage (V/Hz) |
Machine Dimensions (mm) |
Weight (kg) |
Application |
|---|---|---|---|---|---|---|---|---|---|---|
|
AEBM-01 (Entry-Level) |
Board Thickness: 8-40mm; Edge Band Width: 0.3-30mm; Min. Board Size: 70×70mm |
15-18 |
7 |
Single Glue Pot (Non-Sticky) |
PLC Control + LCD Touch Screen |
0.6 |
380/50 |
3200×700×1300 |
800 |
Small Woodworking Workshops, Small-Scale Furniture Production |
|
AEBM-02 (Mid-Range) |
Board Thickness: 8-50mm; Edge Band Width: 0.3-45mm; Min. Board Size: 80×120mm |
18-22 |
12 |
Double Glue Pot (Non-Sticky) |
Delta PLC Control + LCD Touch Screen |
0.6-0.8 |
380/50 |
4700×900×1500 |
1500 |
Custom Cabinet Workshops, Medium-Scale Furniture Factories |
|
AEBM-03 (High-End) |
Board Thickness: 9-60mm; Edge Band Width: 15-55mm; Min. Board Size: 80×120mm |
20-25 |
20 |
Double Glue Pot (Temperature Adjustable) |
Intelligent PLC Control + Touch Screen + Fault Alarm |
0.8 |
380/50 |
8100×900×1600 |
2600 |
Large-Scale Furniture Factories, Panel Processing Plants |
|
AEBM-04 (Specialized) |
Board Thickness: 10-55mm; Edge Band Width: 0.3-50mm; Min. Board Size: 70×100mm |
16-20 |
15 |
Double Glue Pot + Glue Recycling System |
Intelligent PLC Control + Remote Monitoring |
0.7 |
380/50 |
6500×950×1550 |
2000 |
Office Furniture Production, Door & Window Processing |
|
AEBM-05 (Custom) |
Customizable (Board Thickness: 5-60mm; Edge Band Width: 0.2-60mm) |
15-30 (Customizable) |
7-25 (Customizable) |
Customizable (Single/Double Glue Pot) |
Customizable (PLC/Intelligent Control) |
0.6-1.0 (Customizable) |
380/50 or Customizable |
Customizable |
800-3000 (Customizable) |
Custom Woodworking Production, Specialized Panel Processing |
Core Advantages
High Efficiency & High Output
Full-process automation eliminates manual intervention in feeding, gluing, trimming, and polishing, with a feeding speed of 15-25 m/min, which is 5-8 times that of manual edge banding. It can handle large-scale batch production, significantly improving production capacity and shortening delivery cycles.
Consistent & Precise Processing Quality
Equipped with high-precision processing units and intelligent control systems, the edge banding effect is uniform, seamless, and smooth, with a processing accuracy of up to ±0.05mm. It avoids quality problems caused by manual operation (such as uneven gluing, uneven trimming, and edge band falling off), ensuring consistent product quality.
Cost Saving & Profit Improvement
Reduces labor costs by 60-80% (only 1-2 operators are needed for one machine, replacing 5-8 manual workers). The double glue pot design and precise glue control reduce glue waste by 30% or more, and the low failure rate and long service life reduce maintenance costs, effectively improving enterprise profitability.
Strong Versatility & Wide Adaptability
Supports various board materials (density boards, fiber boards, particle boards, solid wood panels) and edge banding materials (PVC, ABS, melamine, solid wood veneer).The adjustable processing range adapts to different board thicknesses and edge banding widths, meeting diverse production needs.
Why choose us
High-Quality Components & Stable Performance:
We use high-quality key components (Delta PLC, high-speed motors, precision milling cutters) sourced from trusted suppliers, ensuring the machine's stable operation for 24 hours of continuous work. The high-strength steel main body and wear-resistant parts extend the service life of the machine to 8-10 years, reducing replacement costs.
Fully Customizable Solutions:
One-on-one professional customization according to customer production scale, processing materials, and site conditions-customizable processing range, feeding speed, glue pot type, control system, and machine dimensions. For large-scale factories, we provide integrated production line matching services to improve overall production efficiency.
1.5-Year Quality Guarantee & Comprehensive After-Sales Support:
All automatic edge banding machines come with a 1.5-year quality guarantee-free replacement for non-human damage (such as component failure, structural deformation). Our professional after-sales team provides 24-hour online consultation, on-site installation, debugging, and training services, and supplies spare parts for a long time to ensure uninterrupted production.
Flexible MOQ & Factory-Direct Competitive Pricing: B2B buyers benefit from flexible MOQ (1 unit for standard models, 5 units for custom models) and factory-direct pricing, eliminating intermediate links and reducing purchase costs. Bulk orders (≥10 units) enjoy 10-25% bulk discounts, further reducing enterprise procurement costs.
