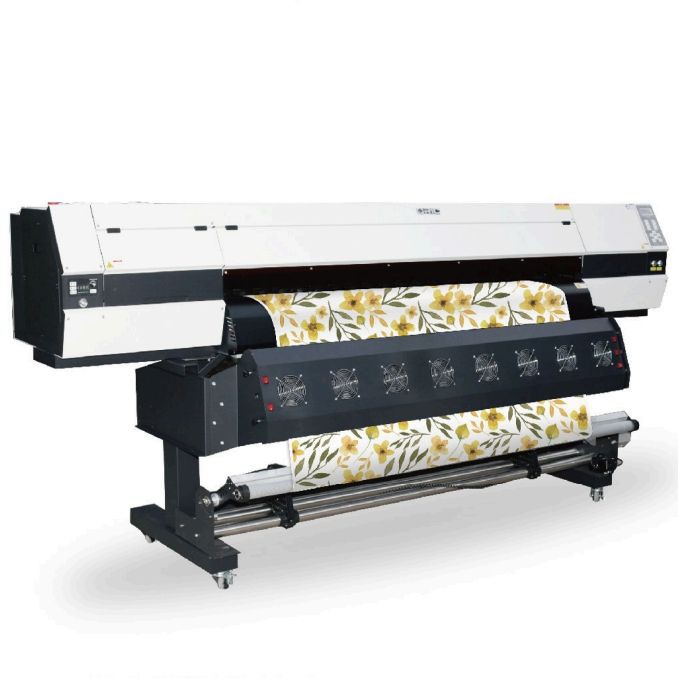

High Performance 3 Heads Digital Printer
High-Performance 3 Heads Digital Printer
A digital printer is a digital imaging device that converts electronic files directly into physical prints by depositing ink or toner onto substrates, without the need for intermediate steps like plate making or stencil creation.It is widely used across industries, with two main technology categories: inkjet digital printers (using microscopic nozzles to spray ink droplets) and laser digital printers.Compared to traditional printing methods, digital printers offer unparalleled flexibility and efficiency: they support one-piece printing (no minimum order quantity), real-time design adjustments, and variable data printing (VDP)-allowing unique elements like names, QR codes, or serial numbers to be added to each print. They also eliminate plate costs and setup time, reducing initial investment and operational waste, making them ideal for small-batch production, custom orders, and rapid turnaround projects.
Technical Parameter Table
|
Model |
Print Head (3 Pcs) |
Print Resolution (dpi) |
Print Speed |
Color Configuration |
Ink Type |
Print Size Range |
Substrate Compatibility |
Power (kw) |
Machine Dimensions (mm) |
Weight (kg) |
Application |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3HP-DP01 (Commercial) |
Epson I3200-A1 |
1440×1440 (Max 2880×2880) |
9 ㎡/h (6-pass); 7.5 ㎡/h (8-pass); 35 ㎡/h (4-pass for textile) |
CMYK + White + Varnish (Optional) |
UV-Curable / Water-Based / Dye Sublimation |
A4 to 1800×1300mm |
Paper, Cardstock, Fabric, Plastic, Thin Acrylic, PET Film |
1.2 |
1850×900×1640 |
202 |
Small Printing Shops, DIY Studios, Advertising, Small-Batch Textile Printing |
|
3HP-DP02 (Industrial Textile) |
Epson I3200-A1 |
1440×1440 (Max 3200) |
120 ㎡/h (2-pass); 1500 mtr/24hrs (44") |
CMYK + LC + LM |
Dye Sublimation Ink |
1900mm (Width) × Unlimited (Length) |
Polyester, Chiffon, Silk, Flags, Textile Fabrics |
2.5 |
4400×2450×1250 |
650 |
Textile Mills, Fashion Factories, Large-Scale Fabric Printing |
|
3HP-DP03 (Industrial UV) |
Ricoh G5i |
1440×1440 (Max 2880×2880) |
100 ㎡/h (Color); 200 ㎡/h (Large Format) |
CMYK + White + Varnish + LC + LM |
UV-Curable Ink (LUS-120/LUS-350 Optional) |
A0 to 2500×1300mm |
Glass, Metal, Ceramic, Acrylic, Plastic, Paper, Building Materials |
3.5 |
1800×1200×1600 |
680 |
Packaging Factories, Industrial Decoration, Large-Scale Advertising |
|
3HP-DP04 (DTF Commercial) |
Epson XP600 |
720×1200 to 720×2400 |
4 ㎡/h (6-pass); 2.1 ㎡/h (8-pass); 1 ㎡/h (12-pass) |
CMYK + White + Fluorescent Colors (Optional) |
DTF Ink |
≤600mm (Width) × Unlimited (Length) |
PET Film, Textiles, Garments, Custom Gifts |
1.2 |
1700×750×1500 |
30 |
DTF Printing Shops, Custom Apparel, Small-Batch Gift Production |
|
3HP-DP05 (Custom) |
Customizable (Epson/Ricoh/Toshiba) |
Customizable (720×720 to 2880×2880) |
Customizable (1 ㎡/h to 120 ㎡/h) |
Customizable (CMYK, CMYK+W+V, CMYK+LC+LM) |
Customizable (UV-Curable/Dye Sublimation/Water-Based/DTF) |
Customizable (A4 to 3000×6000mm) |
Customizable (All Common Substrates) |
1.2-4.0 |
Customizable (1700×750×1500 to 2500×1500×1800) |
30-800 |
Specialized Customization, Industrial Production, High-Precision Printing |
Core Advantages
Triple-Head Parallel Printing & High Speed
The three print heads work in parallel, doubling or tripling the printing speed compared to single-head models (up to 120 ㎡/h for industrial textile models). This significantly reduces production cycles, making it ideal for high-volume orders and urgent projects.
High Precision & Vibrant Colors
Equipped with industrial-grade print heads and variable ink drop technology, achieving print resolution up to 2880 dpi.The triple-head configuration (CMYK + LC/LM or White + Varnish) enhances color gamut and layering, ensuring smooth gradients, clear details, and accurate color reproduction-even for fine text and complex patterns.
Stable Long-Term Operation
The triple-head design reduces wear on each individual head, extending service life (up to 10,000 hours per head). Equipped with intelligent auto-cleaning, moisturizing, and white ink circulation systems, preventing clogging and ensuring stable ink flow for 24-hour continuous operation. Low failure rate (≤0.3% monthly) reduces downtime.
Wide Compatibility & Versatility
Supports multiple ink types (UV-curable, dye sublimation, water-based, DTF) and a wide range of substrates-from paper and fabric to rigid materials like glass and metal. Adjustable fixtures and print beds accommodate different sizes and thicknesses, expanding application scope.
why choose us
High-Quality Components & Stable Performance:
We use high-end key components (Epson I3200-A1, Ricoh G5i print heads, THK guide rails, Leadshine motors) sourced from trusted suppliers, ensuring stable operation and consistent print quality. The machines have a long service life (5-8 years) and low maintenance costs, reducing operational risks. All machines are tested and trialed before delivery.
Fully Customizable Solutions: One-on-one professional customization according to customer needs-customizable print head type, ink type, resolution, speed, color configuration, and machine dimensions. For B2C customers, we offer compact commercial models; for B2B customers, we provide industrial-grade models with automated integration options (feeding/unloading systems). Customizable ink types adapt to specific substrates (e.g., DTF ink for garments, UV ink for rigid materials).
Ultra-Low MOQ & Factory-Direct Competitive Pricing:
B2B and B2C buyers benefit from ultra-low MOQ (1 unit for all models), allowing small businesses and DIY studios to purchase without bulk pressure. Factory-direct pricing eliminates intermediate links, reducing purchase costs by 20-30% compared to distributors. A royalty program is available for long-term B2B cooperation.
Fast Lead Time & Global Shipping:
Standard models ship within 2-5 business days; custom models have a lead time of 7-15 business days[superscript:8]. We offer global shipping to all major regions. Compact models are shipped via FedEx/DHL (3-7 business days), while industrial models use sea/rail freight to minimize costs. Professional packaging (ISPM 15 compliant) avoids transportation damage.
