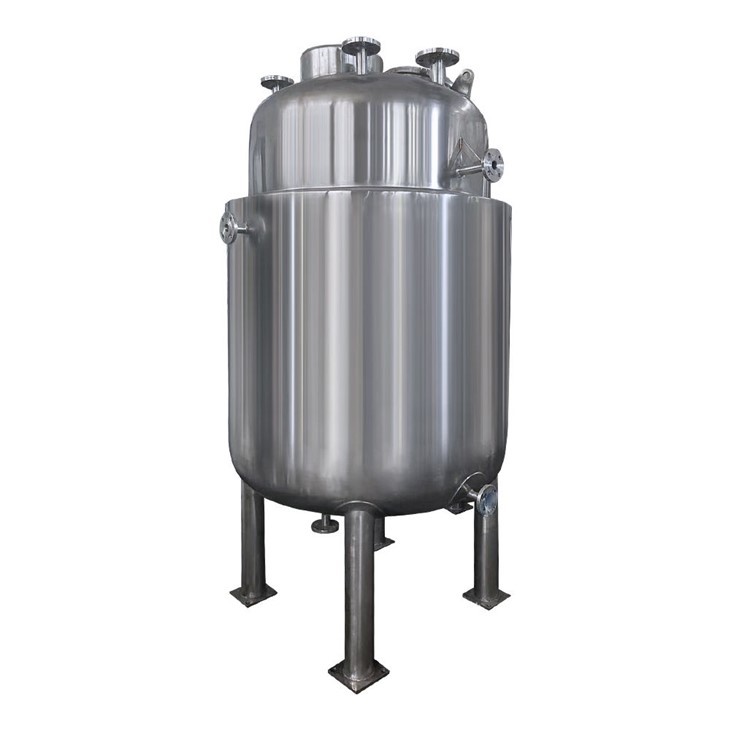

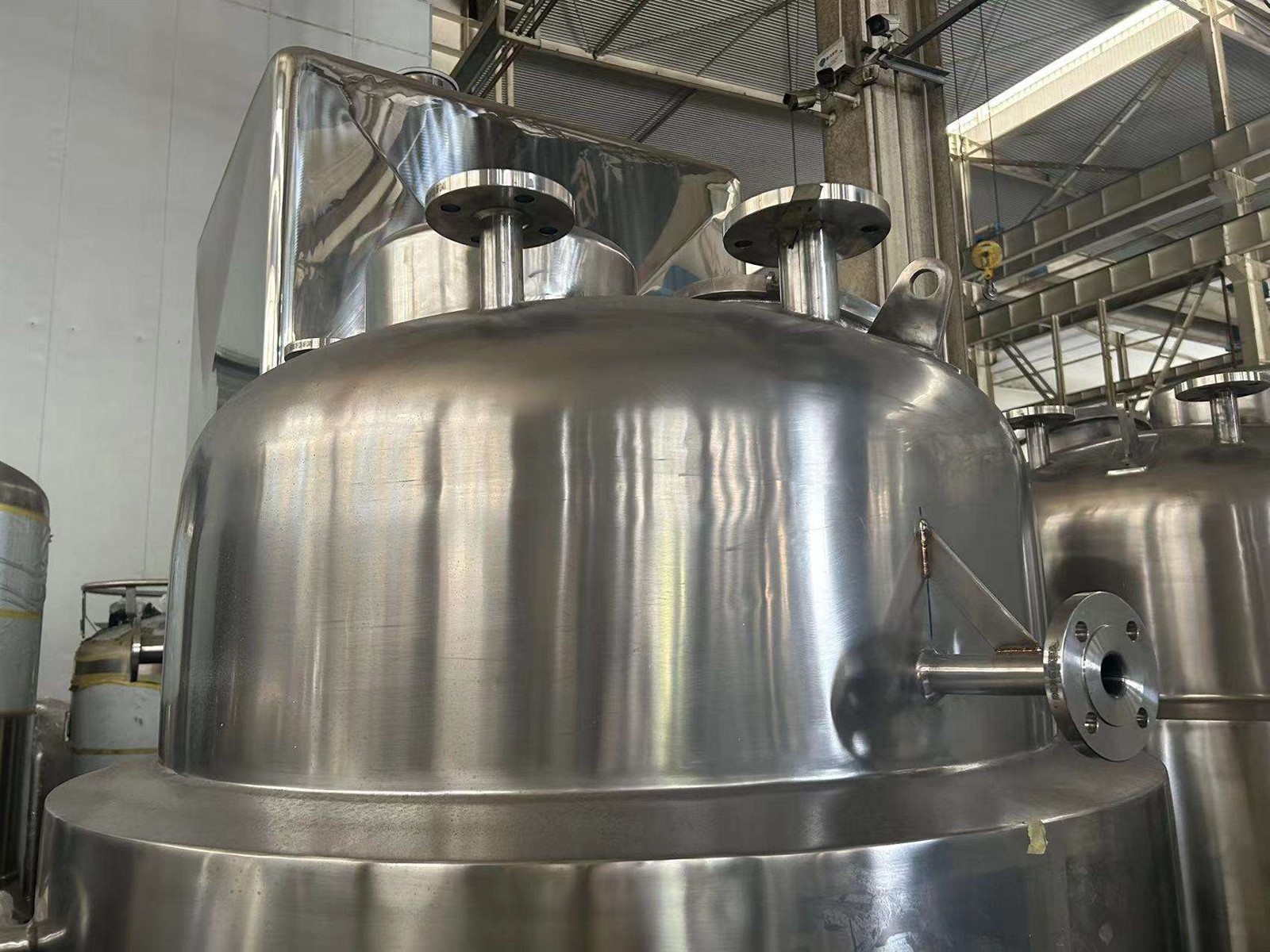

Stainless Steel Preheating Reactor

A Stainless Steel Preheating Reactor is a specialized industrial vessel that uses stainless steel as the main material to preheat materials to a specified temperature before they undergo chemical reactions, mixing, or processing. Its core function is to eliminate temperature differences between materials and the main reaction system, ensuring that materials enter the next process in a stable temperature state—this not only improves reaction efficiency and product uniformity but also prevents side reactions caused by sudden temperature changes, reducing product waste. The reactor is composed of key components including a stainless steel body (inner tank), jacket (for heating), preheating system (electric, steam, or heat transfer oil), stirring device, temperature control system, sealing device, and support structure.

Send Inquiry

Product Introduction

A Stainless Steel Preheating Reactor is a specialized industrial vessel that uses stainless steel as the main material to preheat materials to a specified temperature before they undergo chemical reactions, mixing, or processing. Its core function is to eliminate temperature differences between materials and the main reaction system, ensuring that materials enter the next process in a stable temperature state-this not only improves reaction efficiency and product uniformity but also prevents side reactions caused by sudden temperature changes, reducing product waste. The reactor is composed of key components including a stainless steel body (inner tank), jacket (for heating), preheating system (electric, steam, or heat transfer oil), stirring device, temperature control system, sealing device, and support structure.

Technical Parameter Table

Parameter Category	Specification Details	Test Standard	Typical Value	Customizable Range
Material of Body	Stainless Steel (304, 316L, 321); 316L for strong corrosion resistance	ASTM A240, GB/T 24511	304/316L Stainless Steel	304, 316L, 321, 2205 Duplex Stainless Steel
Effective Volume	Small to large capacity for lab and industrial use	GB/T 150, ASME VIII	50L - 5000L	10L (lab) - 10000L+ (industrial)
Preheating Temperature Range	Normal temperature to high temperature	ASTM D1598, GB/T 151	50℃ - 300℃	Room Temperature - 500℃ (high-temperature customized)
Temperature Control Precision	Accuracy of temperature regulation	GB/T 13610, IEC 60751	±1℃	±0.5℃ - ±2℃ (adjustable)
Working Pressure	Pressure resistance of the reactor	GB/T 150, ASME VIII	0.1 - 2.0 MPa	0.1 - 10.0 MPa (high-pressure customized)
Heating Method	Common preheating methods	GB/T 151, ASTM D2779	Electric Heating, Steam Heating, Heat Transfer Oil Heating	Electric, Steam, Heat Transfer Oil, Microwave-Assisted Heating
Heating Power	Power of the heating system	GB/T 14048.1, IEC 60335	5kW - 100kW	2kW - 200kW (based on volume and temperature demand)
Stirring System	Stirrer type and speed	GB/T 150, ASTM E1462	Paddle/Anchor Type; 10 - 150 rpm	Paddle, Anchor, Turbine, Ribbon, Scraper Type; 10 - 500 rpm
Body Thickness	Thickness of the stainless steel body	GB/T 150, ASME VIII	6mm - 16mm	4mm - 30mm (based on pressure and volume)
Sealing Type	Sealing device to prevent leakage	GB/T 150, ASTM F3019	Mechanical Seal, PTFE Packing Seal	Mechanical Seal (single/double), PTFE Packing Seal
Heat Transfer Coefficient	Efficiency of heat transfer	ASTM C177, GB/T 10294	200 - 1000 W/(m²·℃)	150 - 1200 W/(m²·℃) (based on heating method)
Jacket Type	Jacket structure for heat transfer	GB/T 151, ASME VIII	Single Jacket, Double Jacket (with insulation)	Single Jacket, Double Jacket, Half-Pipe Jacket
Control System	Temperature and pressure control	IEC 61508, GB/T 20438	PLC Control, Touch Screen, PID Temperature Regulation	PLC Control, Remote Monitoring, Data Logging, Automatic Alarm
Environmental Certification	Safety and hygiene standards	FDA, GMP, RoHS, REACH, ISO 9001	Compliant with FDA, GMP, ISO 9001	Custom certifications based on industry requirements
Support Type	Installation support structure	GB/T 150, ASME VIII	Floor-Standing, Ear-Type Support	Floor-Standing, Suspended, Ear-Type Support

Core Advantages

Excellent Corrosion Resistance and Material Safety

The body and core components are made of high-quality stainless steel (304, 316L, etc.), which can resist the erosion of strong acids, alkalis, organic solvents, and salt-containing media. 316L stainless steel, in particular, contains molybdenum elements, which can effectively avoid stress corrosion cracking caused by chloride ions, making it suitable for harsh working conditions such as marine-related preheating or high-corrosion chemical materials. The stainless steel surface is precision polished, non-porous, and non-absorbent, which will not react with materials or contaminate the product-meeting the GMP hygiene standards of the pharmaceutical and food industries, and ensuring the safety and purity of preheated materials.

Precise Temperature Control and Uniform Preheating

Equipped with an intelligent temperature control system, the reactor adopts PID temperature regulation technology and PT100 temperature sensors to real-time monitor and adjust the preheating temperature, with a control precision of ±1℃. This ensures that materials are preheated to the specified temperature stably, avoiding local overheating or insufficient preheating that may cause side reactions or product quality defects. The matching stirring system (optional paddle, anchor, or turbine type) ensures uniform mixing of materials during preheating, further improving the uniformity of temperature distribution-critical for materials that require consistent preheating, such as pharmaceutical intermediates and coating materials.

Energy-Saving and High Efficiency

The reactor is designed with a high-efficiency heat transfer structure (such as double jacket or half-pipe jacket) and thermal insulation layer, which reduces heat loss during the preheating process-heat loss is controlled below 5%, significantly improving energy utilization efficiency. Compared with traditional preheating equipment, it can save 15%-30% of energy consumption. The rapid heating design allows the reactor to reach the set temperature quickly (heating rate up to 10℃/min), shortening the preheating cycle and improving overall production efficiency. For high-temperature preheating needs, heat transfer oil heating can achieve stable and efficient heat transfer, avoiding the heat loss problems of steam heating.

Strong Structural Stability and Long Service Life

The stainless steel body is manufactured through precision welding and heat treatment processes, with high mechanical strength (tensile strength ≥520MPa) and pressure resistance, which can withstand long-term high-temperature and high-pressure working conditions without deformation or leakage. The mechanical seal or PTFE packing seal device ensures good sealing performance, preventing material leakage and environmental pollution. The stainless steel material is wear-resistant, corrosion-resistant, and not easy to age, and the service life of the reactor can reach 8-10 years-far longer than glass preheaters (2-3 years) or carbon steel preheaters (3-5 years), reducing equipment replacement costs for businesses.

Applications

For Chemical Industry Customers

Chemical production often involves corrosive materials and high-temperature preheating needs, and the reactor's 316L stainless steel material and corrosion-resistant design can withstand the erosion of strong acids, alkalis, and organic solvents, avoiding equipment corrosion and material contamination. Precise temperature control ensures that chemical materials are preheated to the optimal reaction temperature, reducing side reactions and improving product yield and purity. The energy-saving design reduces production costs, while the customizable volume and pressure adapt to the preheating needs of different chemical processes (such as sulfonation, nitration, and polymerization).

For Pharmaceutical Industry Customers

Pharmaceutical production has strict requirements for material safety and hygiene, and the reactor's stainless steel body (Ra≤0.8μm precision polishing) meets GMP standards, ensuring no material residue and easy cleaning and sterilization (can withstand 121℃ moist heat sterilization). The precise temperature control (±0.5℃ optional) is suitable for the preheating of pharmaceutical intermediates, enzymes, and vaccines, avoiding temperature fluctuations that affect product activity. The sealed design prevents cross-contamination, ensuring the safety and compliance of pharmaceutical products, and helping customers pass FDA and GMP certifications.

For Food and Beverage Industry Customers

Food preheating requires high hygiene and no pollution, and the reactor's food-grade 304 stainless steel material is non-toxic, odorless, and does not react with food materials, ensuring food safety. It is suitable for the preheating of food additives, fruit juices, dairy products, and condiments-uniform preheating ensures consistent product taste and quality. The easy-to-clean design avoids cross-contamination between different batches of food, and the energy-saving heating system reduces production costs, making it ideal for small and medium-sized food processing enterprises.
