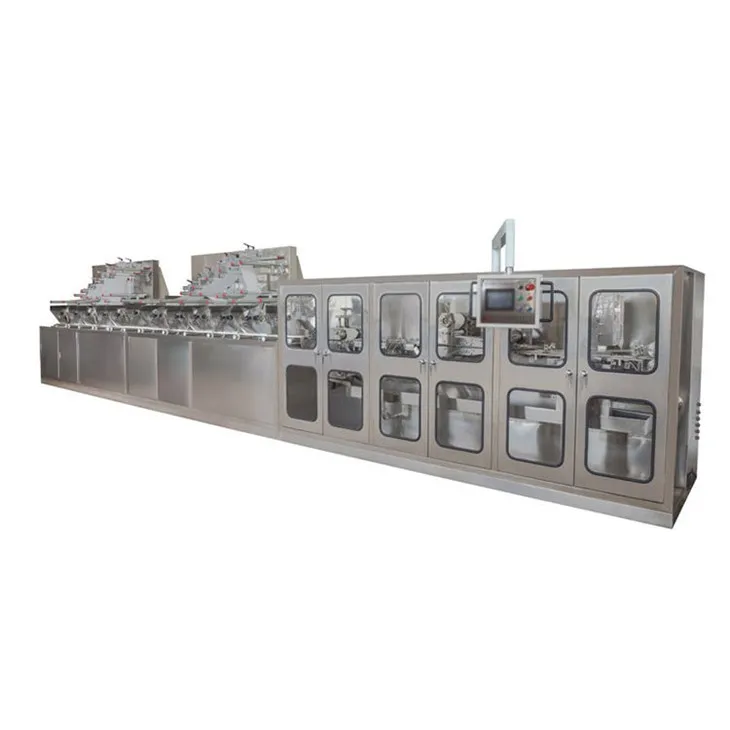

Automatic Wet Wipes Production Equipment

This is a high-speed integrated production line for canister/bucket wet wipes (5~120 pieces per pack), widely used for baby wipes, disinfectant wipes, household cleaning wipes, and personal care wipes. It integrates non-woven unwinding, slitting, folding, liquid filling, bagging/canning, sealing, coding, and counting in one fully automatic process.

Send Inquiry

Product Introduction

Fully automatic wet wipe production equipment is a type of machinery used for manufacturing wet wipes, capable of achieving high levels of automation throughout the entire production process. These machines typically consist of various functional modules, including raw material supply, liquid mixing and spraying, wet wipe formation, cutting, packaging, etc. Fully automatic wet wipe production equipment can efficiently and rapidly complete the production process of wet wipes, and often incorporate intelligent control systems to monitor the production process and ensure product quality.

TECHNICAL PARAMETERS

Suitable material	a ctm.dioa	Folding form	30-120sheets
Unit weight of material	35-80g/m²	Packing style	Automatic packing machine full servo reciprocating
Raw material specification	Double roll with core,width 210mmx2,+1200mm)	Open hole Labeling	esataudteabaling system
Folding type	nterfold type& single extraction	Packing fim specification	Double packaging film Max diameter 80mm W460mm
Opensize	L120-230mmxW150-330mm	Packing film connection	Automatic roll change without stopping
Wet wipes size	L120-230mmxW80-120mm	Packagesize	L100-360mmW95-140mm,H10-90mm
Moisture type	Fluid pipes sprayindependently	Productionspeed	Fold4000-7500pieces/min,Packing40-80 hags/mi
Flow control	2.5-5.0times flow meter contro	Power	AC380V50/60Hz 20KW
Cutting	Synchronous roller Cutter	Overall dimensions	L19500xW3500xH2200mm
Stacking mode	Servo motor, independent control	Machine net weight	10000kg

MACHINE CHARACTERISTIC

Controlsystem	Multi-Axis Motion Controller	Packing style	Automatic packing machine full servo eciprocating
Drive element	Servo motor	Material connection	add
Operate interface	10"LCD touch screen	Joint detection	Detection online
Cuttin	synchronous rollerCutter	Flow control	Flow meter control

Key Advantages

1. High Degree of Automation

Fully automatic unmanned production from raw material input to finished product output.

Only 1–2 workers required for supervision, greatly reducing labor cost.

2. High Production Efficiency & Stability

High-speed servo drive ensures stable operation at high speed.

Continuous 24-hour production with low failure rate.

3. Accurate Quantitative & Uniform Humidity

Precision pump liquid adding system ensures even wetting, no dry or over-wet wipes.

Stable folding and cutting, consistent product size.

4. Hygienic & Safe Production

All parts in contact with wipes are food-grade stainless steel.

Closed structure to avoid dust and secondary pollution, meeting hygiene standards.

5. Wide Adaptability

Suitable for various non-woven fabrics and formula liquids (alcohol, disinfectant, skin care solution).

Quick mold change for different sizes and packaging types.
