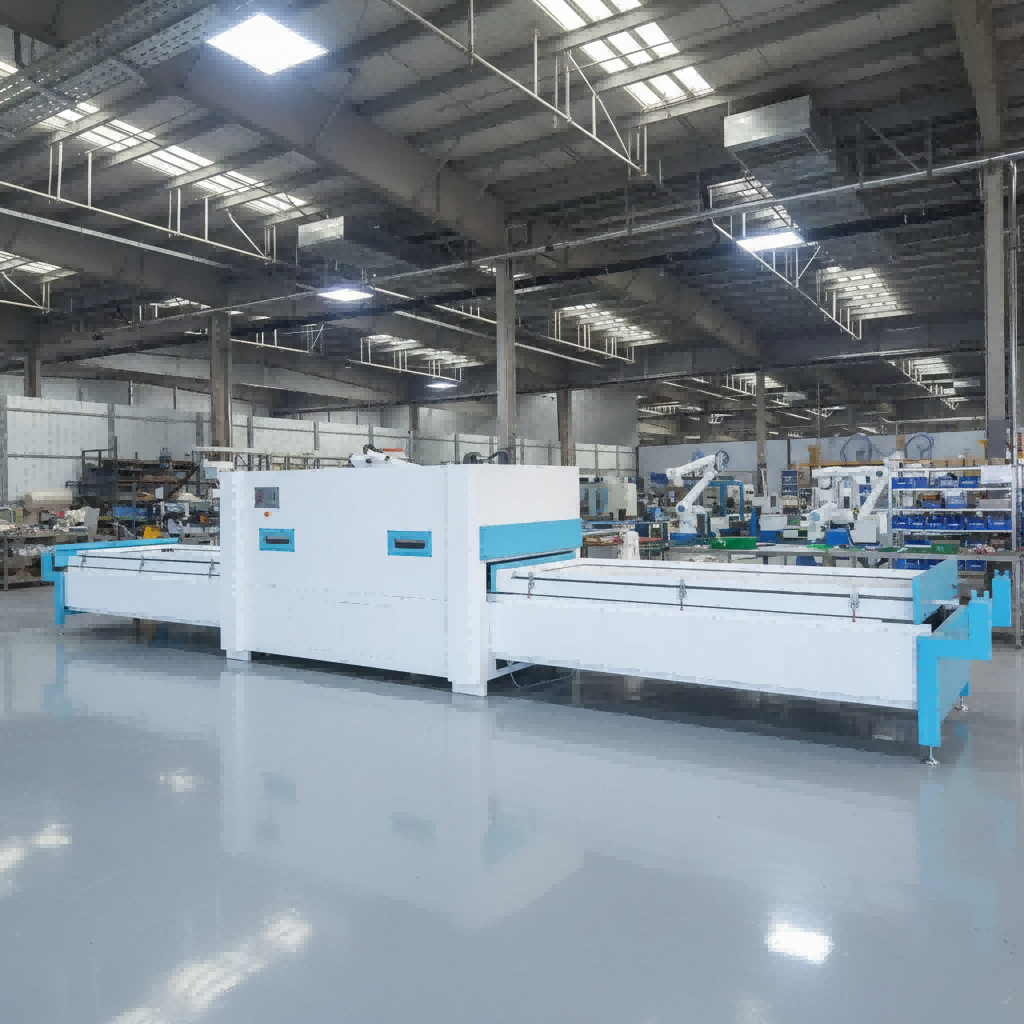

Automatic Hot Melt Glue Laminating Machine For MDF Board

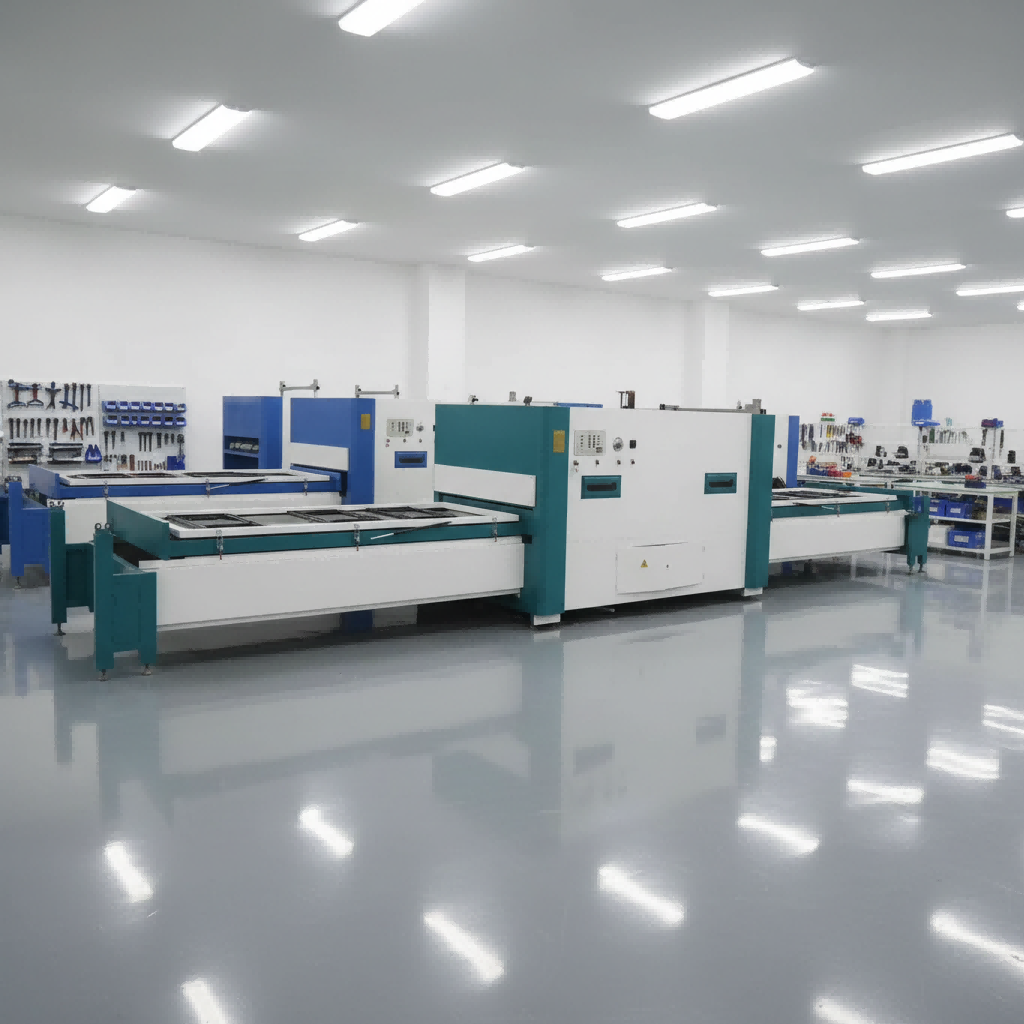

Automatic Hot Melt Glue Laminating Machine for MDF Board
The Automatic Hot Melt Glue Laminating Machine for MDF Board operates through a scientific and efficient workflow that covers six core stages: automatic feeding, board cleaning, hot melt glue melting & application, decorative material lamination, pressing & cooling, and finished product output. The entire process is fully automated, requiring only 1-2 operators for monitoring and parameter adjustment, which significantly reduces labor dependence and human error, while ensuring consistent lamination quality across all products.In the feeding stage, the machine is equipped with a heavy-duty roller conveyor and an entry scissor lift, which can stably and evenly convey MDF boards of different thicknesses (1-50mm) from the storage area to the processing line. The conveyor speed is adjustable, and the positioning system ensures accurate alignment of MDF boards, avoiding deviation during lamination. For large-scale production, the machine can be integrated with an automatic stacker and 180° flipper, realizing fully automated feeding and stacking without manual intervention.
Technical Parameter Table
|
Parameter Name |
Standard Specification |
Optional Specification |
|---|---|---|
|
Lamination Speed |
3-25 m/min |
Up to 30 m/min (high-speed model) |
|
Applicable MDF Board Width |
650mm-1400mm |
Customizable (up to 2400mm) |
|
Applicable MDF Board Thickness |
1-50mm |
0.5-60mm (customizable) |
|
Glue Type |
PUR hot melt glue |
EVA hot melt glue, APAO high-temperature glue |
|
Glue Melting Temperature |
115-140℃ (PUR); 155-165℃ (EVA) |
165-180℃ (APAO high-temperature glue) |
|
Glue Application Amount |
20-50 g/㎡ |
10-60 g/㎡ (adjustable) |
|
Glue Melter Capacity |
55 gallon (200kg) |
Customizable capacity |
|
Pressing Pressure |
0.3-0.5 MPa |
0.2-0.8 MPa (adjustable) |
|
Control System |
Schneider PLC + 7-inch touch screen |
Siemens/Mitsubishi PLC + 10-inch full-color touch screen |
|
Power Supply |
AC 380V, 50/60Hz, 25kW |
AC 220V/110V (customized), 32kW-110kW (large-scale model) |
|
Compressed Air Requirement |
0.3-0.5 MPa |
6-8 bar (high-pressure model) |
|
Machine Dimension (L×W×H) |
14500×2970×3500mm |
4760×2400×3500mm ~ 17000×5000×3500mm (different models) |
|
Machine Weight |
About 8000kg |
2000kg-12000kg (different models) |
|
Protection Level |
IP54 |
IP65 (waterproof & dustproof) |
|
Communication Interface |
RS485/Modbus-RTU |
WiFi/Bluetooth/USB wireless transmission |
|
Optional Devices |
Automatic stacker, 180° flipper, date printing device |
PVC film corona machine, protective film device, metal detector, infrared heating |
Core Advantages
High-Quality Lamination & Strong Bonding
Adopts PUR hot melt glue technology, which reacts with moisture to form a cross-linked bond that is waterproof, heat-resistant (up to 150℃) and wear-resistant. The high-precision glue application system ensures uniform glue distribution, avoiding bubbles, wrinkles and peeling, and achieving a smooth, mirror-like finish on MDF surfaces.
Full Automation & High Efficiency
Integrates feeding, cleaning, glue application, lamination, pressing, cooling and cutting into one seamless process, reducing labor demand by 80% compared to manual lamination. The lamination speed can reach 3-25 m/min, which is 5-8 times higher than manual operation, significantly improving production efficiency and reducing labor costs.
Versatile Compatibility
Suitable for various decorative materials (PVC film, PET film, HPL, CPL, veneer, decorative paper, aluminum foil) and MDF boards of different sizes and thicknesses. Supports customization of lamination width and thickness, catering to diverse production needs of furniture, decoration and wooden product industries.
Cost-Saving & Eco-Friendly
The adjustable glue application system reduces glue waste by up to 30%, lowering material costs. Uses 100% solid hot melt glue with no solvent residue, no VOC emissions, complying with European and American environmental regulations, and eliminating the need for a drying process, saving energy.
why choose us
Enhance Product Added Value: High-quality lamination improves the aesthetic appeal, durability and waterproof performance of MDF boards, making them more competitive in the furniture and decoration markets. The diverse surface finishes (high-gloss, matte, wood grain) allow businesses to expand product lines and meet different customer demands.
Reduce Costs & Improve Profitability: Full automation reduces labor costs by 60-80%, and the glue-saving design lowers material costs. The high efficiency and low maintenance requirements reduce long-term operational costs, helping businesses improve profit margins.
Ensure Consistent Quality & Reduce Defects: The automatic control system and precise glue application ensure uniform lamination quality across all products, reducing the defective rate to less than 0.005%. This avoids rework costs and improves customer satisfaction.
Customizable Solutions: Multiple models and optional devices are available to meet the specific needs of different production scales-from small workshops to large-scale factories. Customization options include lamination width, glue type, control system and additional devices, adapting to diverse production scenarios.
